Automated storage raises efficiency at French manufacturer

Kasto supplies a Unicompact honeycomb warehouse to optimise stocking and flow of materials at new 20 million euro factory

Posted on 21 Jun 2022 and read 456 times

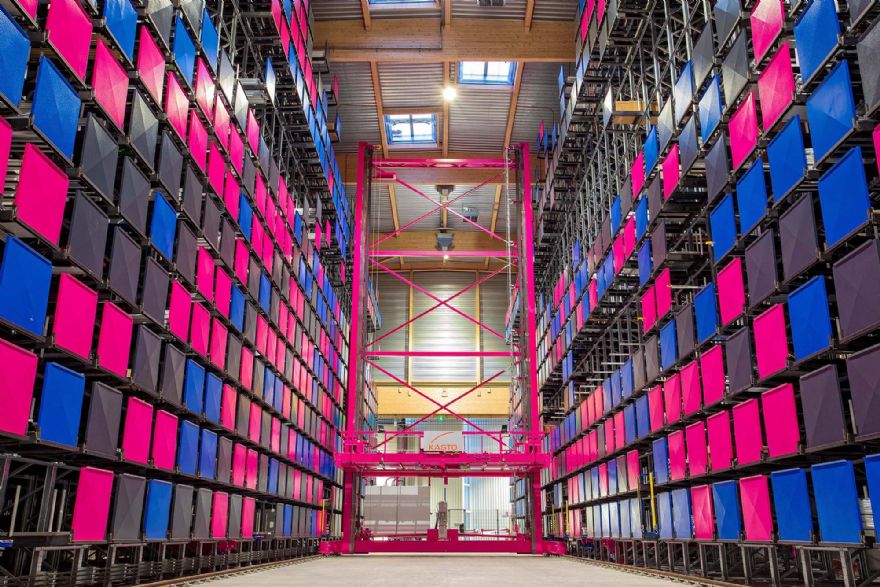

Automated storage raises efficiency at French manufacturerThe Kasto UNICOMPACT honeycomb storage system in Atlantem's Saint-Sauveur-des-Landes plant

Hérige Group subsidiary Atlantem, a French producer of aluminium, PVC, wood and hybrid windows as well as entrance doors, garage doors, gates and roller shutters, took the opportunity during the construction of its new, 20 million euro factory at Saint-Sauveur-des-Landes in Brittany to optimise stocking and flow of materials.

To automate logistics in the manufacture of its products, the company chose German storage and sawing equipment manufacturer Kasto to supply an automated Unicompact honeycomb warehouse. Long stock is reliably supplied to around 15 work stations and storage of remnants is also managed.

The manufacturer employs 850 people at nine sites in France. In the 2019 fiscal year, sales amounted to 140 million euros, making the company the leading supplier of products in this sector in the French market. They are delivered exclusively to construction firms and the building trade throughout France via four distribution channels — no products are exported.

Atlantem has grown steadily since it was established in 1995, partly through the acquisition of several companies. Jérémy Jouvrot, manager of the continuous improvement department, explained: “We face clear challenges to remain successful, as customers demand high quality at competitive prices. Our strength is to offer standard windows, doors and other products in all materials.”

The move into new headquarters in Noyal-Pontivy last year was an important milestone in the company’s history. The new administration building was designed in collaboration with the staff and serves as a showcase for the expertise of the entire Hérige Group. Construction of the new plant in Saint-Sauveur-des-Landes on an 18,000m2 site had already begun a year earlier for the production of multi-material windows and doors.

Pilot project

Mr Jouvrot continued: “We have created a highly networked factory. The Industry 4.0 plant is intended as a showpiece for our industry and will serve as a pilot project for the optimisation of our other manufacturing centres.”

KastoHis goal was to optimise processes within the new building and so he was looking for an efficient system for material storage and supply. A centralised system was needed for storing all of the company's profile and feeding it automatically to sawing machines.

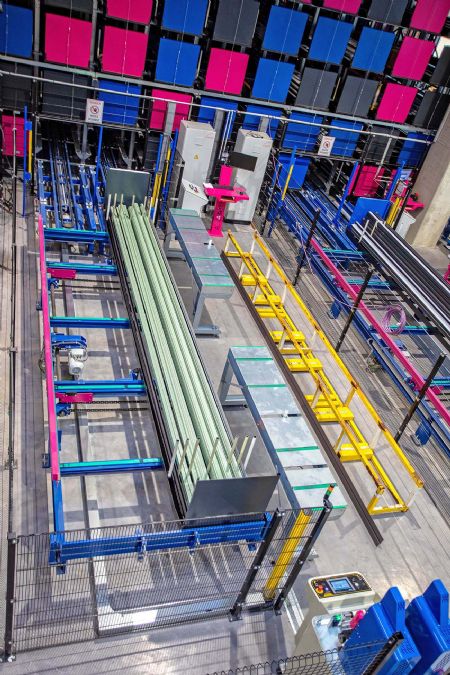

Additionally, a dedicated station was required to allow orders to be prepared by picking from multiple cassettes. It also needed to be capable of sorting and storing profile returning from a coating unit.

Atlantem did not take the search for a suitable partner for this project lightly. A specification sheet containing all important parameters for the new storage system was created and before a supplier was selected, about ten users already equipped with various solutions available on the market were visited.

Mr Jouvrot added: “We selected Kasto as it offered efficient and highly automated options for storing profile. Furthermore, it has a subsidiary in France — as it does in the UK and elsewhere — and therefore a field service team was able to respond quickly if required.”

Kasto recommended its Unicompact honeycomb-type, material-to-operator storage and retrieval system, which starts at around 400 stock locations. It can be either a self-supporting silo structure with roof and wall cladding or a stand-alone unit in existing buildings. The high-storage density ensures efficient use of space.

Short retrieval times

Fast cassette cycles in fully automatic operation enable short retrieval times for efficiently supplying the machines processing the material and the storage system continuously maintains an inventory, allowing orders to be picked economically. The system is of modular design, so modifications and capacity increases can be implemented quickly.

The installation in Saint-Sauveur-des-Landes contains 1,504 storage locations and is 52m long, 22m wide and 16m high. Each cassette measuring 6,600 x 760 x 770mm accommodates a maximum load of one tonne and enables storage of profile directly into the cassette or within customer racks.

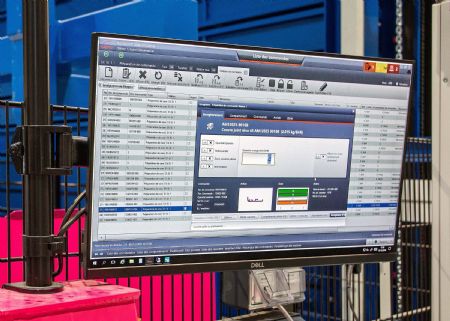

KastoThe energy-efficient operating gantry crane (OGC), which handles two cassettes simultaneously, reaches speeds of up to 160m/min in longitudinal travel, while the lifting beam moves at up to 50m/min. Modern drive technology in combination with Kasto’s system software optimises its performance. Jerk-free starting and braking prevents profiles from shifting when the cassettes are transported. The system is controlled by KASTOlogic warehouse management software, which manages inventory data as well as machining orders.

Due to the modern graphical user interface, system operation is effortless by menu navigation. Error displays and diagnostics are shown in plain text, so the user is able to assess the operating status immediately. A mobile, ergonomic operating panel with a 7in touchscreen allows the OGC to be moved manually during maintenance.

The new storage solution has impressed the management team at Atlantem. Mr Jouvrot said, “Kasto has fully met our high expectations. The storage and handling system was installed and commissioned on time and on budget. It has significantly reduced our employees’ workload.

“We prepare orders from several cassettes and the system runs smoothly and fully automatically. The control software, which is linked to our ERP system, was delivered with modifications perfectly customised to our method of working. In addition, handling operations for feeding our machining stations have been simplified.”

In summary, he said that Atlantem will use Kasto again for future storage solutions at other sites. Clearly the supplier knows the user’s requirements but more specifically, as its ERP system now has an interface to the Kasto software, implementation of future projects will be simplified.
