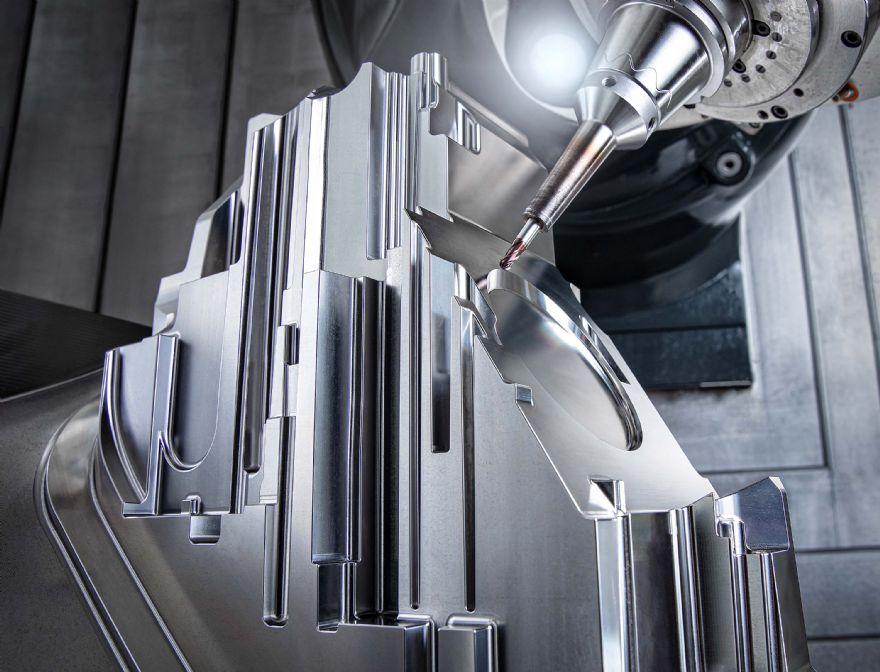

The headlamp lens mould machined with various different types of Horn end millTo highlight the numerous solutions it offers for milling free-form surfaces, German tooling manufacturer Horn, whose UK subsidiary
Horn Cutting Tools Ltd is in Ringwood, points to a recent application involving the machining of a plastic injection mould for mass producing the lens for a headlamp. The large number of surfaces, shoulders and radii required the use of many different tools.
High-feed milling cutters with indexable inserts from Horn's DAH 8 system were used for roughing the mould. For finishing, different variants of solid carbide end mills from the Horn DS tool system were utilised. In addition to various diameters of ball nose end mills, circle segment end mills were used. The advantage of the latter, in contrast to ball or torus milling cutters, is that fewer passes were required to achieve a given free-form surface quality, lowering the machining cycle time.

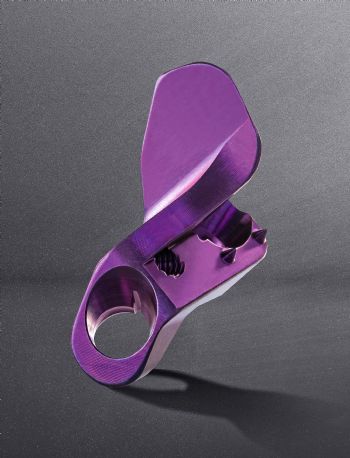

In the medical sector, a complex titanium implant was produced by a five-axis machining centre using Horn DS titanium milling cutters. The shape of the implant comprises numerous free-form surfaces, has about 20 different radii and contains many fillets arranged at different angles. A milling cutter of 10mm diameter and with a corner radius of 0.2mm and another of 6mm diameter with a 0.5mm corner radius completed the roughing. For finishing, a 1mm diameter end mill was used.
For the other operations on the implant, DS cutters of 10/6/4/2 and 0.6mm diameter were utilised, as well as a 2mm diameter ball nose end mill and a DCG solid carbide, coated thread milling cutter with three cutting edges. In a single pass, the tool mills a M 3.5 x 0.5 through-hole thread, which is 8mm deep and inclined at 35deg.
Milling two tapered recesses proved to be highly challenging. Their 43deg taper is about 2mm and must end in a geometrically perfect apex, requirements that were met using a Horn micro milling cutter for the roughing and finishing passes.
