Lancashire-based
www.climavent.co.uk Climavent, a manufacturer and installer of dust and fume extraction systems, has designed a bespoke, highly technical mobile paint fume extraction unit to filter and monitor the emissions generated during paint spraying applications for a renowned aerospace company in Cambridge.
Climavent were commissioned to integrate sensitive, intelligent monitoring equipment and control systems that could measure and adapt how the unit works to eliminate minute solvent and odour particles from the mobile spray booths.
The CV1140 mobile paint fume extraction unit uses eco-friendly coconut shells in a process that filters the particles three times, getting them to below 20mg per m
3 – less than half the Government’s legal limit of 50mg.

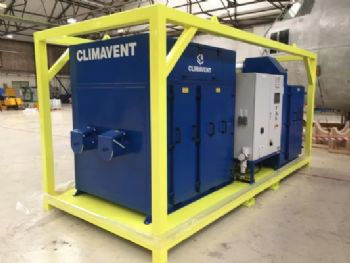

The CV1140 unit, being skid-mounted, can be easily manoeuvred around the workshop and is capable of providing fume extraction for two tented enclosures using up to 50m of extraction hose.
Being supplied with two sets of main filters, the diverter valve and compressed air receiver allows the smooth changeover of filters without user intervention or downtime in production.
Working together with the aerospace firm, Climavent developed a unit capable of producing key information to ensure adherence to UK Government guidelines. It was monitored by the control panel on the unit which, using data logging software, PC and printer connection and HMI display, enables the end user to monitor and log the emissions as and when required.
The information is also stored on an internal storage device and retrievable via USB or the printing facility.
Having produced the UK’s first intelligent mobile paint fume extraction unit, Climavent is looking forward to producing more technologically advanced units and establishing itself as an industry leader in dust and fume extraction.
For more information call Climavent Systems on (+44) 01942 726164 or email
