Alphacam slashes programming time by 30%

Posted on 24 Oct 2020 and read 1090 times
Alphacam slashes programming time by 30%Demand for rotary dies from protective facemask manufacturers ‘skyrocketed’ following a mask shortage in South Korea, as the Covid-19 pandemic continued to spread.

Specialist engraving and rotary die contractor FineTech had recently invested in an additional ten licences of Alphacam CAD/CAM software, from Hexagon Manufacturing Intelligence, so was well-equipped to meet the challenge, especially as it slashed programming time for rotary dies by up to 30%, and total machining time by 10%.

Kim Min-wook, deputy director of FineTech’s Technology Research operation, said in the case of general mask dies, CAM programming has been reduced from more than 1hr to 40min, but the most significant benefit Alphacam gives, is in the production of engraving and rotary dies, of the sort used in the production of face masks such as KF94 and N95 to help combat Covid-19.

“The CAM system we were using previously, wasn’t optimised for those dies, but Alphacam is equipped with capabilities for engraving three-dimensional relief shapes, which means it readily meets the strict requirements for knife height, and the gaps between the knives.

“Height gaps should be applied simultaneously to the same flat plate with a different height and depth. Alphacam is the only CAM system able to implement this toolpath simultaneously – and that was the decisive factor for purchasing it.”

FinetechHe explained that the 3-D engraving feature is used more than any other during the production process. In the case of milling with engraving dies, relatively thin and narrow spaces are needed within the same plate.

Kim Min-wook continued: “In those sections, other CAM software creates toolpaths, but can’t produce it for the narrow areas, so I had no choice but to create that part of the toolpath again, with different cutting depths in the excluded areas.

“But Alphacam substantially increases efficiency by automatically generating the complete toolpath all at once, through setting the maximum depth of the tool, even if the gap is narrow. Alphacam is the only CAM software with this capability.’

In particular, rotary dies can be cut using cylindrical dies in rotary presses, and can be cut continuously in various shapes, so applying them to mask production increased productivity and improved the quality of cutting surfaces more precisely than stamping tools.

The main advantage of rotary and embossed moulds is that they can achieve a variety of shapes, by changing the height of the knife on the same steel plate.

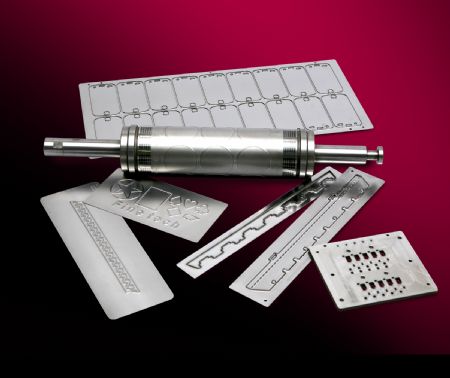

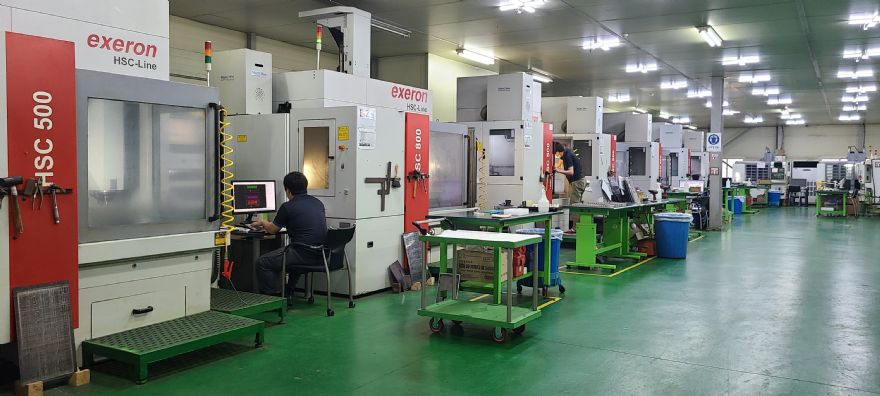

FinetechFineTech operate with around 100 staff at its headquarters and a branch in Vietnam. It mainly produce rotary and engraving dies on a range of 10 CNC milling centres and usually manufactures dies after etching thin sheet metal (from 0.6 to 3T thicknesses) according to part designs.

Its rotary and engraving die moulds are used for more sophisticated and stable cutting than conventional dies such as wood, or press-blanking dies. This means that FineTech’s dies can be used by industries such as consumer electronics, mobile phones, cars, electronic circuits, medical services, food and clothing sectors.

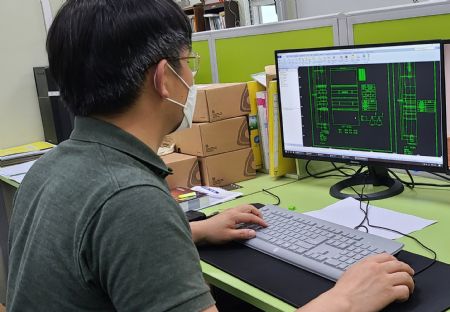

Kim Min-wook is also a firm believer in using Alphacam’s powerful built-in simulator to ensure that the program has produced completely collision-free toolpaths.

He concluded: “Once I had seen for myself that the problems visualised in the simulation actually occurred, I became fully confident that once it had proved out the toolpaths, there wouldn’t be any expensive collisions.”
