Alphacam plays key role in production of antennas

Posted on 04 Jan 2021 and read 830 times
Alphacam plays key role in production of antennasDriverless cars of the future will rely on highly specialised antenna technology which will receive the accurate positioning data used to guide the car while it is driving autonomously and keep the occupants safe.

Made from electro ceramics, printed with toolpaths on a bespoke scientific laser lithography processing machine programmed by Alphacam software, the antennas are being developed to synchronise information from multiple networks through the GNSS (Global Navigation Satellite Systems).

Dr Oliver Leisten, CTO and founder of Helix Technologies, which invented the concept of dielectric-loaded multi-filar antennas, and is the world’s leading authority on the technology, said: “The digital networks must always be properly synchronised so that data doesn’t need infinite buffering, and everything works in a timely way.”

He explained that it is all about ensuring that an automaton is “situationally aware” both of its own position and of any physical hazards, and he says the combination of mapping, positional and camera information from a mixture of sensory inputs comes together to guarantee the car’s movements are safe.

This means the quality of the antennas has to be extremely high to collect the data without interference. Especially when he explains that in a city environment the buildings reflect the signals constantly.

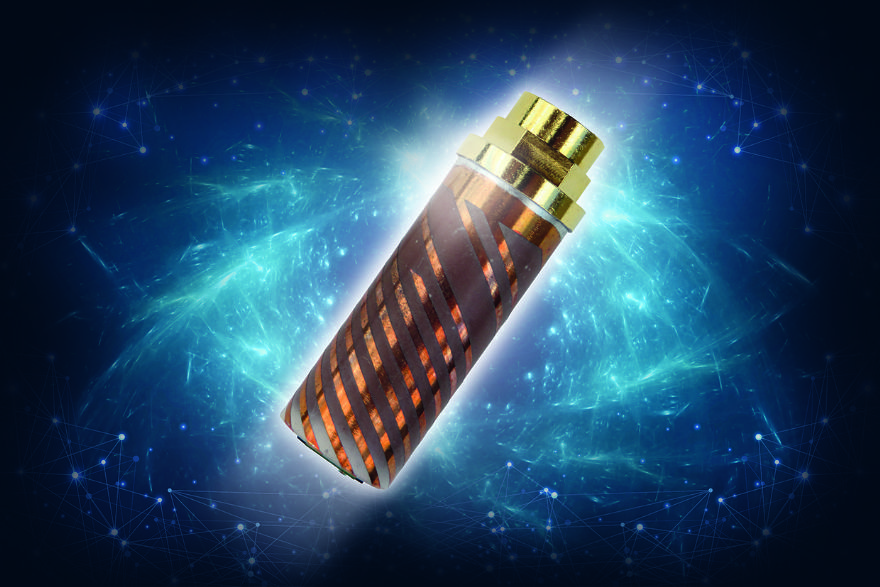

Alpha 1“In effect, we are asking the antennas to tell us our position to very high accuracy, in a hall of mirrors, so it is vital that they are capable of seeing the direct signals with much higher clarity, and significantly attenuate the signals that reflect from the buildings.”

There is also another challenge facing the antennas that has to be taken into account. Dr Leisten said the signal “corkscrews” from the satellite, rotating to the right.

He added: “If you look at a clock in a mirror, the hands appear to be going anti-clockwise. In the same way, the reflected signal would be rotating to the left. Therefore, it is important that the antennas are able to distinguish the right-hand rotation. This means they have to be manufactured to extremely tight tolerances, and this is why we use Alphacam.”

Dr Leisten pointed out that not only does Alphacam CAD/CAM software from Hexagon Manufacturing Intelligence, create data for the laser imaging machine, but was instrumental in ensuring that Helix Technologies remained fully open during the UK-wide coronavirus lockdown.

He continued: “I was able to program the laser from home, and we just needed one engineer and technician social distancing in the factory to load the machine and remove the finished parts.”

The company started using Alphacam on a daily basis in the summer of 2019, but while its bespoke machine was being built in partnership with OpTek Systems before that, Alphacam engineers worked closely with OpTek on developing the tools, as well as creating the post processor, focusing on the proprietary language of the controllers.

Dr Leisten added: “Alphacam controls the movement of the laser spots over the device, driving the toolpath in a similar way as it would a small tool in a milling machine. We use the program to drive the laser rather than a mill because we need extremely accurate writing movement that is carried out with low, smooth, curved entry inputs and outputs, with no jerking or rapid acceleration and deceleration.

The tool movement is executed in a relatively gentle way, with a view to getting the accuracy available from a precision system under Alphacam’s control.

“If we were cutting the pattern with a mill bit we would be forced to have some rounded edges as the tool comes to a corner. But with the laser image we create a ‘mask’ and put it into the correct position, then move the laser over it, and we have got a sharp edge.”

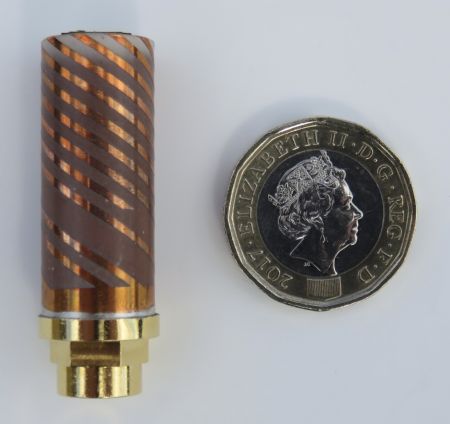

Alpha 2The company defines its products in a 3-D CAM system, storing images, models and drawings in a database. Alphacam then connects all the necessary aspects to create the toolpaths, and outputs the final NC programs to the post processor.

The material Helix Technologies is using has been specially developed to significantly affect the wavelength measured inside the core of the antenna.

Dr Leisten explained: “Helical antennas are printed on a material which has a very high dielectric constant. Basically, it slows the speed of light, and we can use these highly refractive materials to make lenses and other components in the optical spectrum.”

“The speed of light is reduced considerably, but we don’t lose energy. As we can manufacture smaller antennas without losing a lot of energy in the process, we can make attractive products which have a focusing effect.

“The fields are more concentrated, so the central position, or the phase centre, of the antenna, is less ambiguous, meaning accurate positions can be pinpointed with a much greater degree of certainty.”
