Largest Peiseler rotary indexing table to date for electric car production

Posted on 26 Feb 2021 and read 961 times

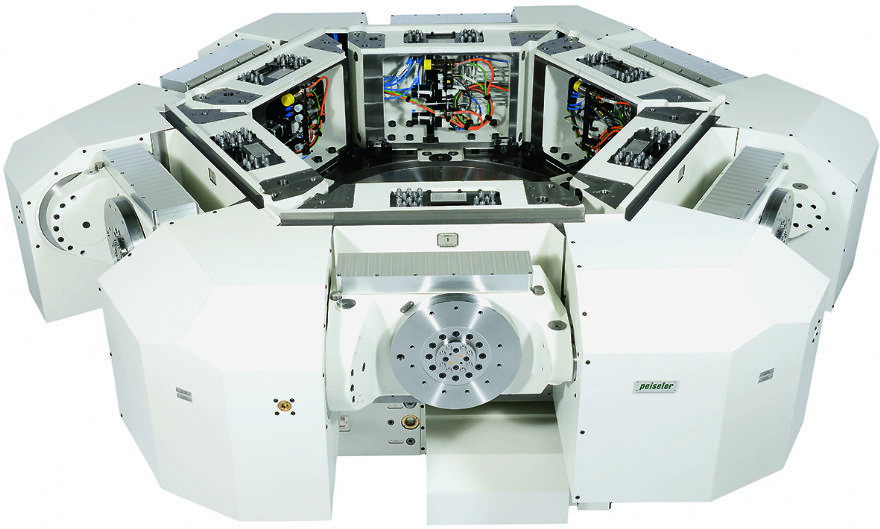

Largest Peiseler rotary indexing table to date for electric car productionGermany-based Peiseler is helping to increase the productivity of a well-known German car manufacturer with a bespoke rotary indexing table. The Germany-based company developed the innovation with its customer UNIOR Special Machines in Slovenia.

The new rotary indexing table will be the centrepiece of a machine tool which will be used to machine lightweight components for electric cars.

Marc Gronau, Peiseler sales manager, said: “It has a diameter of 3,000mm and weighs 10 tonnes, making it the largest and most sophisticated unit of this type that we have ever built in our 200-year history.”

The basis is the worm-wheel-driven Peiseler ATU 1600 index table, which uses a direct path-measuring system to clock six ZATC 300 two-axis swivelling devices in five steps from one machining station to the next and then with a pilgrim step back to the starting position.

For this, the rotary indexing table has a total of 13 axes and a maximum load of 250kg per station, which ensures high-precision simultaneous machining of the workpieces.

The Peiseler rotary indexing table is the centre of the whole rotary indexing machine with five stations for drilling and milling as well as a loading and unloading station.

Mr Gronau continued: “A special requirement for our design was not just to achieve maximum power density for highly dynamic cycle times in the smallest possible installation space. In order to keep the ever-present tolerances as low as possible, it was also necessary to position each of the two-axis swivelling devices with the utmost precision.”

Another complex task was the media supply for clamping, releasing and monitoring the workpiece clamping device — a rotary distributor with eight channels was used for this.

Mr Gronau concluded: “We have not only built our largest rotary indexing table to date, but also developed a customised solution that ensures short cycle times and low unit costs in the production of electric vehicle components.”
