Ceramic end mills help optimise aerospace component machining

Posted on 05 Sep 2023 and read 995 times

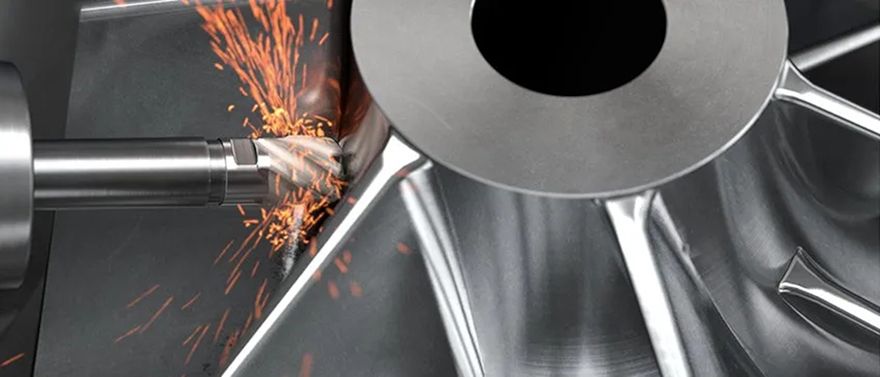

Ceramic end mills help optimise aerospace component machiningHigh temperatures arise when machining heat resistant super alloy (HRSA) materials

As components made from nickel-based alloys become increasingly commonplace in the aerospace industry, demand for optimised cutting tools continues to grow. But, despite their advantages, nickel-based materials exhibit poor machineability due to their low thermal conductivity, potential for adhering to cutting tools and the presence of abrasive particles within the alloy structure.

Due to these issues, productivity with carbide tools tends to be low. In addition, part complexity means that some components demand extended reach. Henri Sevonen, senior industry segment manager — aerospace, for the West Midlands-based metal-cutting specialist Sandvik Coromant, explains how new ceramic end mill technology has emerged to help meet these requirements, with the potential to optimise the machining of aero-engine parts and provide significant competitive gains.

He said: “Most aerospace parts are manufactured from heat resistant super alloys (HRSAs) and nickel-based alloys, which place a particular set of demands on production engineers looking to manufacture components like spools, turbine disks, combustion casings and blisks. Although many manufacturers use conventional solid-carbide end mills, such tools have their limitations in terms of performance when it comes to nickel-based alloys.

“In a highly competitive global arena, aerospace machine shops are looking for next-level technologies that are capable of delivering a ‘step-change’ in factors such as productivity and/or tool life. Ceramic end mills can provide that very leap, offering up to 20-30 times more machining speed, in comparison with solid-carbide tools for operations such as shoulder and face milling. Such impressive gains can be achieved largely because ceramic cutters retain their hardness at the high temperatures which arise when machining nickel-based alloys.”

Productive solution

Mr Sevonen continued: “The brazed ceramic CoroMill 316 exchangeable-head end mill for roughing operations is a productive solution for aerospace engine applications in ISO S materials. In the first instance, the exchangeable head concept facilitates inherent process flexibility. Also available is a six-flute version with a straight corner radius that delivers highly productive side milling operations, and a four-flute version designed to boost face milling thanks to its high-feed face geometry.

“The ceramic substrate of the end mills allows for a different cutting process in comparison with traditional solid-carbide tools. Importantly, the unique S1KU SiAlON grade is purpose-designed for the superior machining of nickel alloys, and is supported by negative geometry that provides a tough cutting edge. The latter also features a T-land for stable operations. SiAlON carries a chemical composition of aluminium oxide and silicon nitride (Al203+Si3N4), a combination that promotes high wear resistance, even at elevated temperatures.”

A stable set-up is advised in all cases, and always without coolant application; machine shops should use pressurised air instead as coolant would simply burn at the high temperatures involved. In addition, the use of coolant promotes thermal shocks and has a negative effect on tool life. Importantly, high spindle speeds are required, of at least 13,000rev/min. Further recommendations include the use of down milling, as well as a programmed tool path that keeps the tool in constant contact with the material.

Mr Sevonen concluded: “It is clear that nickel-based alloys will play a vital role in the future of aerospace manufacturing. However, there are many challenges facing those tasked with producing aerospace engine components. It is only through continued tooling innovations, such as ceramic end mill technology, that aerospace machine shops will be able to optimise the machining process.”
