NSK develops grease degradation diagnosis technology

Posted on 24 Apr 2024. Edited by: John Hunter. Read 1588 times.

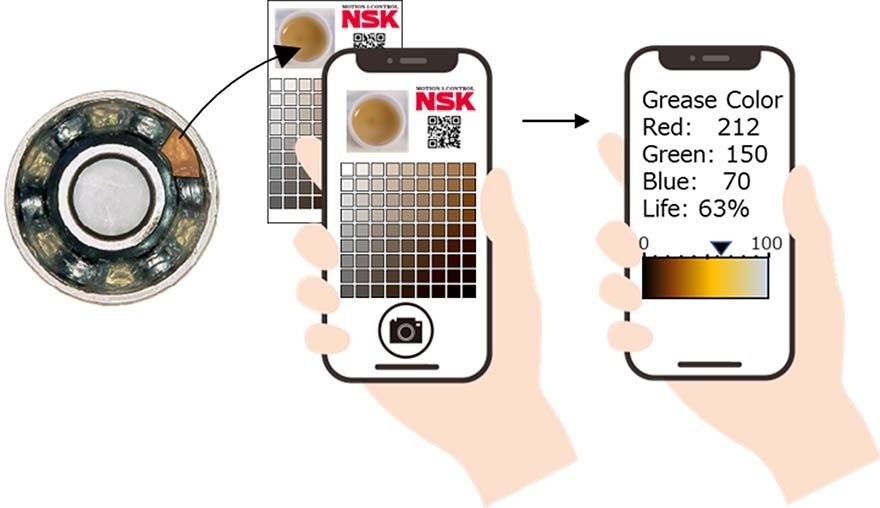

NSK develops grease degradation diagnosis technologyThe new NSK mobile app uses grease deterioration diagnosis technology

NSK is developing a world-first high-accuracy way of quickly and accurately diagnosing the remaining life of lubricant grease. The company will provide the solution as a mobile app, enabling users to perform the on-site analysis of lubricant condition in bearings and linear motion systems. This innovative capability will reduce the need for grease inspection and replenishment costs, and help companies implement condition-based maintenance strategies. NSK is currently seeking customer input and feedback ahead of launching the new app.

A broad spread of machinery and equipment, from machine tools to railcars, use grease-lubricated products like bearings, ballscrews and linear guides. However, grease degrades over time as machinery operates, so on-site lubricant inspection is vital to help maximise uptime and OEE (overall equipment effectiveness). In recent years, more and more companies are switching their equipment maintenance strategy from time-based maintenance to condition-based maintenance. A need therefore exists for a grease degradation diagnosis method capable of rapid and highly accurate deployment on-site. Such an app would also help combat labour shortages and support sustainability efforts.

Existing high-accuracy diagnosis methods rely on laboratory analysis, but this comes with high cost, a lack of suitability for on-site use, and a long wait for results. Visual observation or densitometer methods are therefore more common, but suffer from low accuracy. As a consequence, many companies replenish lubricant unnecessarily early to ensure stable operation, resulting in wasteful grease usage.

With these thoughts in mind, NSK set about developing an efficient, cost-effective, fast and accurate method of grease degradation diagnosis. Importantly, the new NSK app can analyse the level of lubricant degradation using just a small sample of grease.

Chemical changes to the base oil and additives of the grease occur due to heat from operation and oxidation with the passage of time. These chemical changes cause the molecular structure of the lubricant to change and absorb more short-wavelength light, affecting its colour. Grease itself starts off white when new, turning yellow or orange with use and eventually becoming black, which indicates the grease is at the end of its life. The NSK app quantifies grease by its colour to calculate remaining life.

NSK has a 40-plus year history of in-house grease development, allowing the company to base its new grease degradation diagnosis technology on a deep understanding of the chemical composition of lubricants.
