New snail-inspired robot can climb walls

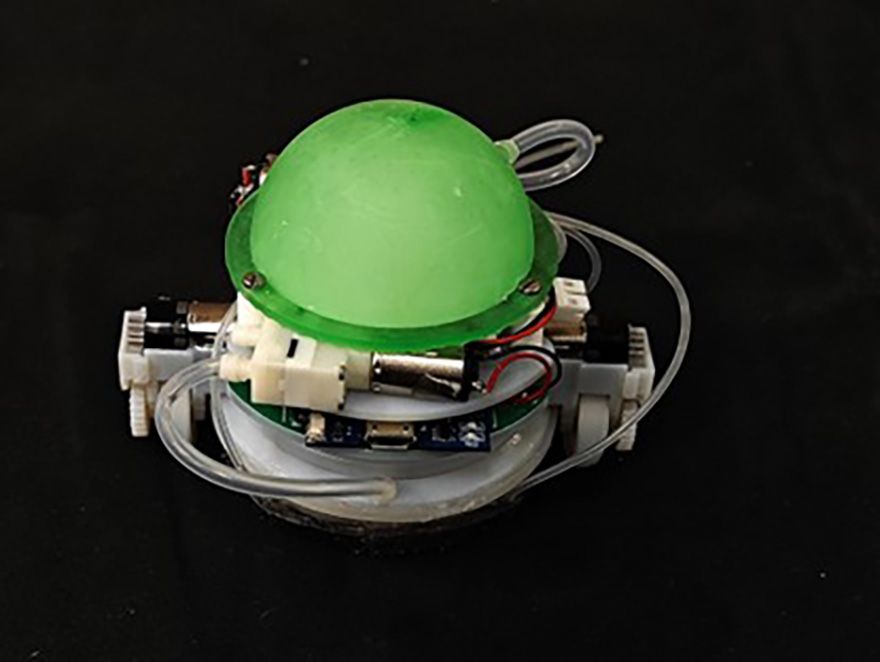

Photo: Tianqi Yue

A robot, designed to mimic the motion of a snail, has been developed by researchers at the University of Bristol. Adding to the increasing innovative new ways robots can navigate, the team, based at the Bristol Robotics Laboratory, fitted the robot with a sliding suction mechanism enabling the device to slide on water, a substitute of a snail’s mucus which also acts as an adhesive.

The study (Snail-inspired Water-enhanced Soft Sliding Suction for Climbing Robots by Tianqi Yue, Hermes Bloomfield-Gadêlha and Jonathan Rossiter), which was published in the journal Nature Communications, shows a novel way for robots to scale walls easily, potentially revolutionising how difficult-to-access surfaces such as blades of wind turbines, hulls of ships, aircrafts and glass windows of skyscrapers can be autonomously inspected. These features also endow sliding suction with great potential for future applications in robotic fields, including industrial gripping, climbing, outdoor and transportation.

Snails can stably slide across a surface with only a single high-payload sucker, offering an efficient adhesive locomotion mechanism for next-generation climbing robots. The critical factor for snails’ sliding suction behaviour is mucus secretion, which reduces friction and enhances suction.

Stable adhesive sliding behaviour
Lead author Tianqi Yue explained: “People know that snails have a stable adhesive sliding behaviour, even though they are carrying a heavy payload, in this case a shell. Inspired by this, we presented a ‘sliding suction’ mechanism and developed a sliding suction robot, which achieved comparable sliding ability as snails.”

As mucus plays an important role in the sliding suction mechanism, the team used water as a cheap, easy-to-access and clean artificial mucus to help the robot slide while the suction remained. They optimised the materials of the suction cup, designed the mechatronic system of the robot, and were able to demonstrate practical applications of the robot, such as carrying a 200g mass and avoiding obstacles.

The robot also demonstrated high-loaded sliding ability carrying 1kg mass, 10-times heavier than itself. The sliding suction allows a lightweight robot to slide vertically and upside down, achieving high speeds and does not require energy during static adhesion.

Mr Yue concluded: “Through the performance of a sliding suction robot, we demonstrated that sliding suction offers low-energy consumption, high-adhesion efficiency and safety, high-loading capacity and low complexity, while only leaving a quick-to-evaporate water trail. The most exciting finding of our research is that the proposed sliding suction mechanism is a novel clean climbing strategy and will significantly advance the development of the next-generation of climbing robots.”
