Bindon Engineering invests in automation

A new SYNERGi automation system from Leamington Spa-based Mills CNC has helped Bindon Engineering Ltd improve an existing in-house machining process by eliminating frequent, disruptive and costly manual part-loading and unloading operations.

The installation of the SYNERGi Sprint automated manufacturing cell, dedicated to machining high-precision centre column (activator) parts for a long-term customer, has minimised downtime and optimised workflows, resulting in continuous, uninterrupted production and faster turnround times.

Bindon Engineering Ltd, a leading precision sub-contract specialist based in Poole, Dorset, recently took delivery of a new, bespoke SYNERGi Sprint automation system supplied by Mills CNC, the exclusive distributor of DN Solutions’ and Zayer machine tools in the UK and Ireland, and a supplier of high-productivity automation solutions to component manufacturers.

The system, designed by Mills CNC’s automation application engineers and installed at Bindon Engineering’s 36,000ft² facility in July 2025, has significantly improved an existing machining process developed by the company some years earlier to machine high-precision centre column (activator) parts, in small- to medium-batch sizes, on one of its existing multi-tasking turning centres.

The integration of the SYNERGi Sprint automation system with a Doosan 10in chuck Puma TT 2500SY twin-turret, twin-spindle turning centre with Y-axis capabilities, supplied by Mills CNC in 2019, has helped create a new, more-efficient automated machining process for part-loading and unloading operations, and is geared to continuous production.

Faster turnround times
Since being installed, the SYNERGi Sprint automated manufacturing cell has been operating to full capacity and has helped Bindon Engineering improve its productivity, increase process efficiencies and achieve faster turnround times.

Bindon Engineering, established in 1966, and employing 50 people, is a private, family-owned precision sub-contract specialist renowned for the quality and reliability of its milling and turning capability and inspection services. The company, committed to continuous improvement, regularly invests in new CNC machine tools to increase its machining capacity and capabilities with many of the machines acquired having some element of built-in automation — twin-pallet vertical and horizontal machining centres, gantry loader lathes, and lathes with sub-spindles, Y axes and driven tools.

Ian Lawrence, Bindon Engineering’s managing director, said: “Improvement is the name of the game, and we are always looking at ways to increase our productivity and reduce inefficiencies. Machines with built-in automation and multi-tasking capabilities characterise many, if not most, machine tool investments we have made over the last 25 to 30 years.”

Bindon Engineering has developed a strong relationship with Mills CNC over the years and, since the late 1990s, has acquired over 25 machining centres and lathes from the company. In 2022, the company also made its first robot acquisition when it invested in a Doosan M0617 cobot from Mills and integrated it with one of its existing Doosan milling machines.

Mr Lawrence continued: “We have a great relationship with Mills CNC. The machines they sell, and support, deliver excellent cutting performance, are reliable and competitively priced. Furthermore, they are often available from stock facilitating their immediate delivery. Mills’ technical, applications and after-sales service and support are also worthy of special mention and cannot be faulted.”

SYNERGi automation investment
Bindon Engineering machines high-precision valve and actuator parts for customers across a range of processing industries and sectors, including oil and gas, petrochemical, water/waste water treatment and pharmaceutical. These components, made from steel, stainless steel, aluminium and exotics, are machined to tight, tied-up tolerances of +/-0.02mm, and Ra 0.4μm high surface finishes, and are typically processed in small-to-medium batches – up to 7,000-off at the top end.

Mr Lawrence explained: “We regularly monitor and benchmark the performance of our machine shop in order to identify production bottleneck and pinch points. So, at the tail-end of 2024, when a long-term customer announced that it would be renewing, and indeed would be ramping up, its requirements for its high-precision centre columns, we reviewed our existing machining capacity and capabilities to make sure we would be able to meet the increase in demand.”

Bindon Engineering determined that the machining process it had previously developed, and that was already in place, using the full multi-tasking capabilities of its twin-turret, twin-spindle TT 2500SY machine could be made more efficient and improved through automating the part-loading and unloading elements of the process which were deemed to be ‘too labour intensive’.

Mr Lawrence explained: “Owing to our well-established and long-standing relationships with Mills CNC, and the fact that the TT 2500SY was acquired from them in the first place, we contacted Mills in January 2025 and, following several discussions, it was agreed that they would design and develop a robot load/unload solution for us, based on their SYNERGi Sprint system, and integrate it with our TT 2500SY.”

Old process
Centre columns machined on the TT 2500SY are made from different length and diameter pre-cut EN 8 steel tube and, utilising the full multi-tasking capabilities of the lathe, are machined to completion (all front- and back-end operations) in ‘one hit’. Part cycle times are typically around 10min long, with accuracies hitting 0.03mm on selected features.

Mr Lawrence explained: “The process is repetitive and labour intensive, and requires an operator being available to load individual steel tube blanks, at the start of the process, into the machine’s left spindle and, when machining operations have been completed, to unload finished parts from the machine’s right spindle. Because part cycle times are short, the operator is more or less tied up all day tending the machine.”

New process

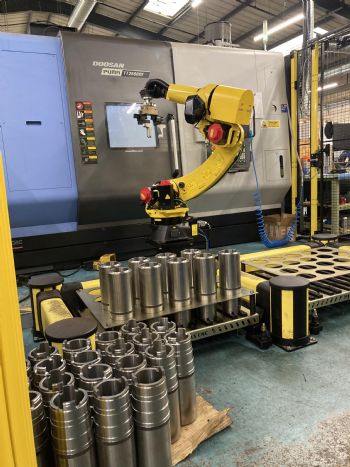

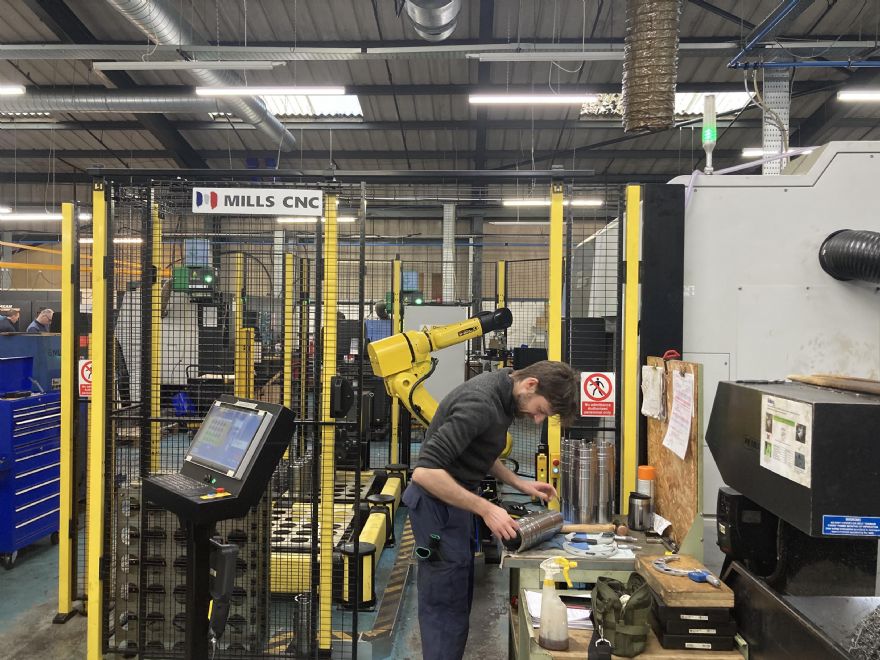

The new process centres around the recently-acquired SYNERGi Sprint system that comprises: a Fanuc 25kg payload capacity industrial robot with a two-jaw pneumatic gripper end-effector positioned in front of the TT 2500SY; industrial safety guarding and SICK light curtains/barriers that enclose the cell and provide a reliable, non-intrusive and efficient safety solution; two, separate, loading and unloading stations, with a 20-socket laser-cut fabricated, zinc-coated grid plate sitting on top of each; and a 17in touchscreen HMI powered by Mills’ proprietary SYNERGi software.

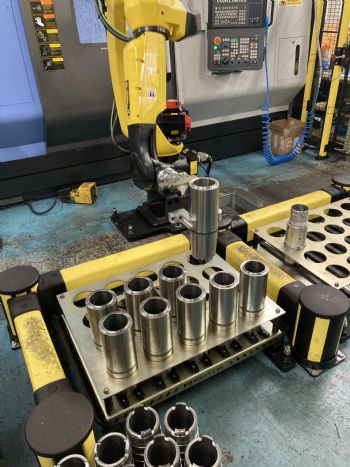

The newly designed automated machining process begins with the operator loading the left grid plate with 20 steel tube blank workpieces. The robot picks up each workpiece in a programmed sequence and, taking advantage of the TT 2500SY’s auto door opening facility, loads individual parts in the machine’s left spindle. The door then closes, automatically, to enable all machining operations (such as turning diameters, knurling, and slotting, to be undertaken seamlessly and in one hit.

Once completed, the robot takes the finished machined part from the machine’s right spindle and places it in a predetermined, designated position on the output grid plate, and the sequence begins again until the 20-part batch has been machined.

Bindon Engineering’s SYNERGi Sprint automated manufacturing cell is fast, productive and efficient, enabling virtually continuous centre column batch production to occur with significantly reduced labour involvement.

Mr Lawrence explained: “The investment in automation is really paying dividends. Turnround times have improved, and we have optimised the production capacity of the TT 2500SY lathe. Furthermore, our SYNERGi Sprint cell is backed by Mills’ remote assistance which provides us with expert advice and diagnostic support should and when we need it.”

Although the cell is working well, the company is looking at further refinements and enhancements in the future by potentially integrating CMM technology for part inspection into the process enabling it to operate unmanned, around the clock.

Mr Lawrence concluded: “With labour costs being as high as they are, and with no sign of them reducing, UK component manufacturers need to fully embrace automation and the unmanned operation of their machines in order to improve productivity and maintain their competitive edge. The investment in the SYNERGi Sprint system provides further evidence that this is the direction of travel for Bindon Engineering.”
