New CAM software simplifies hybrid manufacturing

Posted on 11 Dec 2021 and read 2867 times

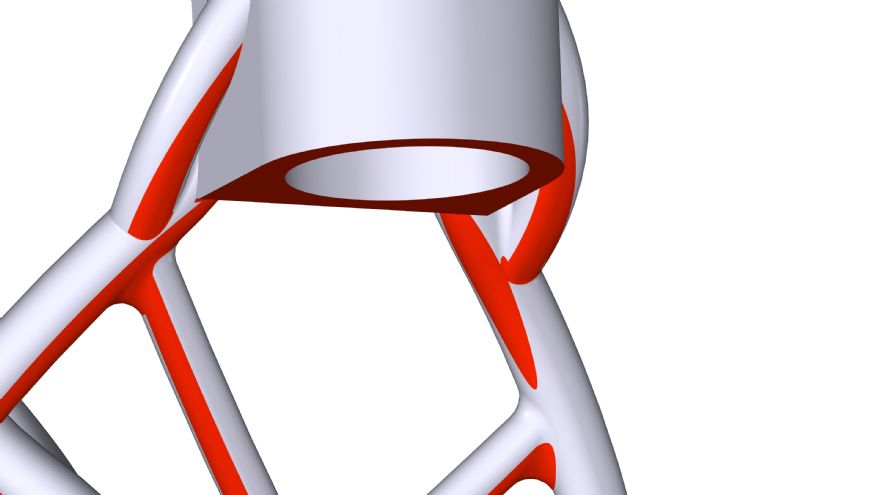

New CAM software simplifies hybrid manufacturingESPRIT CAM reads parametric CAD formats to automatically indentify surfaces that require support (red)

Computer-aided-manufacturing (CAM) software launched by Hexagon’s Manufacturing Intelligence division provides the digital tools needed to prepare 3-D printed components for manufacturing using powder bed fusion (PBF) technologies.

Because hybrid manufacturing entails performing both additive and subtractive processes, integrating build-preparation tools within CAM software streamlines workflows per part and offers significant efficiency improvements when scaling-up additive manufacturing (AM) volumes.

Today, PBF is the most mature AM technology for industrial production and represents 86% of the worldwide machine install base. PBF is used to build 3-D parts by heating successive layers of powder, typically at the micron-level, and generally produces parts that require finishing with conventional CNC machine tools to achieve a high-quality surface finish.

Hexagon’s Esprit CAM software now offers a build preparation workflow within the CAM environment to provide a single, streamlined platform for both the additive build and finishing operations.

Its patented Part-to-Build workflow was developed to change the prevailing 3-D printing paradigm from the preparation of rapid prototypes to industrialisation with a true CAM experience that includes build-preparation steps and the programming tools for post-processing printed parts with wire electrical discharge machining (EDM) and milling machine tools.

In series production, a given part will be produced hundreds of times with the same build plates, orientation, support structure generation, and exposure strategy assignment. The Part-to-Build workflow addresses part preparation and job preparation with dedicated functionality within one piece of software, making manufacturing smarter by enabling volume efficiencies and automating repetitive tasks, such as slicing.

Designed for CAM programmers, ESPRIT CAM’s build preparation employs a workflow based on parametric data that ensures high accuracy and adherence to the geometry of the original computer-aided design (CAD) model until it is sliced in preparation for 3-D printing.

The software reads and manipulates all popular parametric CAD formats and automatically identifies those surfaces that require support. The software also assists with the creation of support structures, generating parametric surfaces with teeth, fragmentation, and perforation.

Support generation can be automated for future builds by assigning a pre-set to a region in the surface, capturing valuable production know-how and improving future productivity. Because the majority of models for 3D-printed parts are STL-based, ESPRIT CAM also provides an STL (mesh) slicer that leverages a built-in software kernel.

Once a part is sliced, it can be imported to the software’s job preparation environment and re-used whenever needed. Here, exposure strategies are automatically assigned according to the chosen machine set-up. As the part is already sliced, the programmer need only nest them and the corresponding machine file is generated based on the target machine set-up.

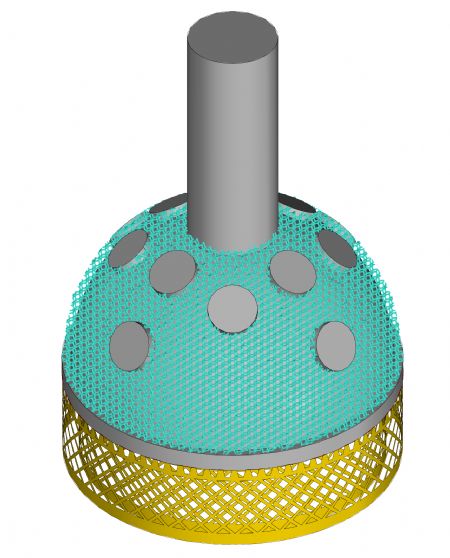

ESPRITPictured left is a hip replacement cup showing structure generated by ESPRIT CAM from parametric CAD (yellow) and lattice from STL format.

Hexagon enjoys close collaboration with machine manufacturers, providing factory-certified machine files for optimal performance and confidence, and partners with world-leading additive research institutions to continuously apply the latest cutting-edge technologies.

Clement Girard, product manager for AM and artificial intelligence at Hexagon, said: “Combining build preparation in the CAM environment is the first step on the journey to true computer-aided manufacturing using additive methods, enabling higher levels of automation and productivity. Our goal is to make the programmer’s life easier, thereby making the shopfloor more productive and future-ready to apply the best available machinery and processes to the part in hand.”

By using ESPRIT Additive PBF in conjunction with other Hexagon products, such as MSC Apex Generative Design and Simufact Additive, customers can further optimise their part designs for AM.
