Mills CNC, the exclusive distributor of
DN Solutions’ machine tools in the UK and Ireland, has announced that the recently introduced Lynx 2600 series (comprising Y-axis and Y-axis with sub-spindle models), has been expanded with the introduction of two new machines.

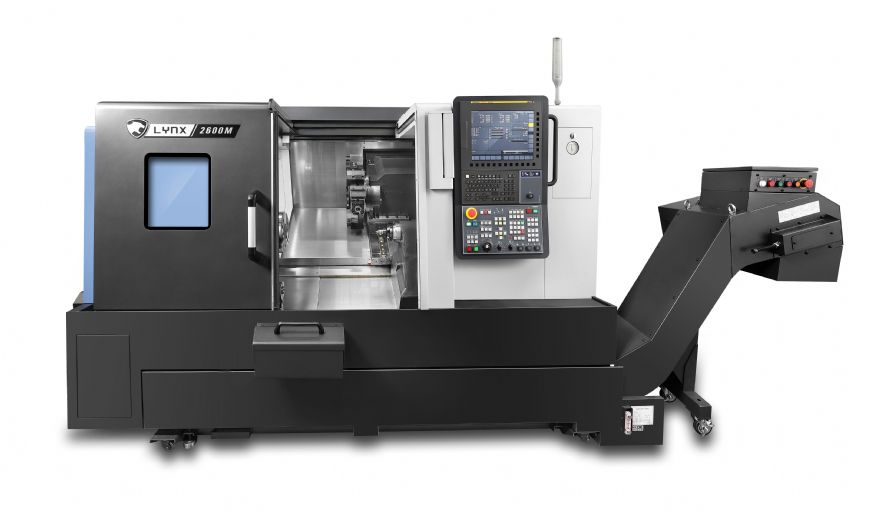

The 10in chuck/81mm bar capacity Lynx 2600 and Lynx 2600M machines, expected to be available in the UK and Ireland later this year, provide the same exceptional speed, accuracy and cutting performance as the other Lynx lathes in the series and, as such, will appeal to component manufacturers in the market for a compact and reliable small parts-turning solution.
The Lynx 2600 and Lynx 2600M have many technology features in common. Both machines have 30m/min rapid rates and are equipped with powerful, high-torque 18.5kW/3,500rev/min spindles (403N-m); high precision and highly rigid roller type LM guideways; servo-driven turrets; hydraulically actuated tailstocks and the grease-type lubrication system. Both machines are also available with a choice of control (Fanuc
i Plus or Siemens 828D).
Despite the similarities there are, however, some important differences between both models. The first, and most obvious, is that the Lynx 2600M has a C axis and driven tooling capability (5.5kW/6000rev/min) which increases this model’s flexibility and productivity potential.
Other differences include a larger maximum turning length and turning diameter of 460 and 658mm for the Lynx 2600 model — 380 and 610mm for the Lynx 2600M — as well as a larger capacity BMT 55P turret with 12-tool stations on the Lynx 2600M as opposed to 10 tool stations on the Lynx 2600.
Tony Dale, Mills CNC’s CEO, said: “The availability of the new models increase the appeal and attractiveness of the series, and further reinforces the proposition that DN Solutions is committed to providing component manufacturers with unrivalled choice and flexibility.”
