KMR Large Field of View video inspection microscopes

Posted on 16 Jan 2024. Edited by: John Hunter. Read 954 times.

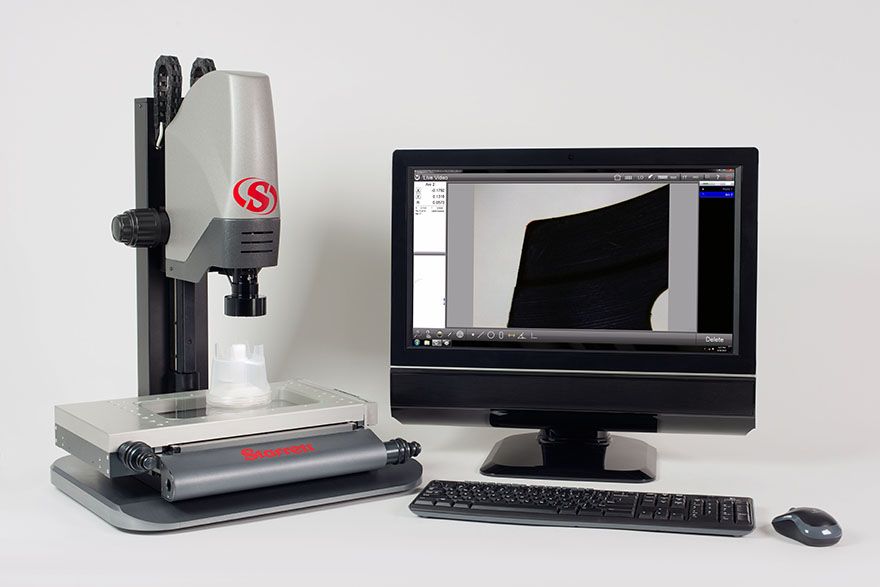

KMR Large Field of View video inspection microscopesKMR200 M3

Available in the UK from Market Harborough-based Optimax Imaging & Inspection Ltd, the KMR Large Field of View series of video inspection microscopes represent the latest advancements in this area, providing versatile and cost-effective solutions tailored for shopfloors. These systems are user-friendly, facilitating quick deployment and training for new operators.

With six models available, the KMR series ensures there is an option suitable for most applications, and customisation is possible to meet specific user needs. In its measurement configuration, the KMR offers a field of view up to 9mm using a 6.5:1 zoom lens. Additionally, three other models use a telecentric lens with options of 0.3x, 0.5x, and 1x, offering a field of view ranging from 7 to 19mm and a screen magnification from 13x to 45x.

The flagship model in this series, the KMR 200 - Stage Motion, features a 200 x 100mm X/Y stage. Particularly suitable for tasks such as receiving inspection, quality assurance, training, manufacturing assembly, research, and documentation, this video system allows easy set-up and operation.

The KMR-200-M3 variant, with its X and Y travel option for stage movement, is well-suited for applications requiring precise measurements. M3 models provide advanced features such as Field-Of-View measurement, powerful image processing, and DXF imports, enabling direct comparison to the workpiece for accurate and repeatable measurements.

Each system comes complete with a current version Windows-based PC, M3 software, and a touchscreen monitor, simplifying tasks like geometric constructs of image annotation, image archiving, and video edge detection.
