Bruker Alicona launches new FocusX measuring device

Posted on 08 Feb 2024 and read 614 times

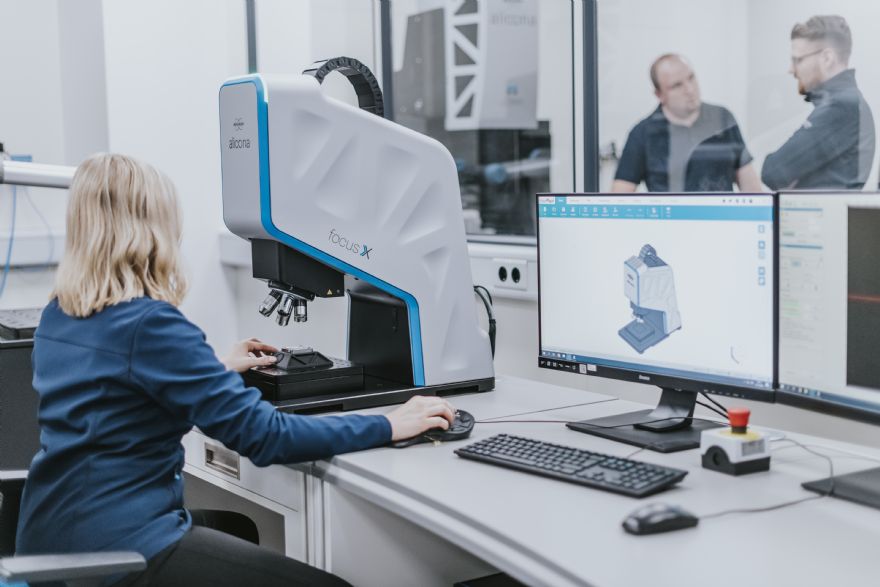

Bruker Alicona launches new FocusX measuring deviceAustria-based Bruker Alicona has unveiled the latest addition to its range of optical 3-D measurement devices — the FocusX . Two years of research and development, close to 10,000 working hours, and 13 prototypes later, it is more versatile than any other measuring device in its class.

Urban Muraus, Bruker Alicona managing director, said: “The aim with FocusX was to develop a system that solves customers’ most important measurement problems. This relates to both the measurement tasks and the industries it can be applied to.”

The new innovation is described as ‘perfect for measurements on complex and difficult-to-reach surfaces, as found in micro-precision manufacturing — neither small radii nor acute angles pose a problem for the device’. FocusX is particularly ideal for measuring small tolerances.

Mr Muraus said: “We are also aware of the importance of the 3-D representation of components,” explaining the virtues of FocusX. With Real3D technology, a component is measured from different angles. As the name suggests, the different visualisations are merged into one 3-D image.

The big advantage of optical measurement over tactile technology is that it works without contact, whereas tactile systems must scan the components. So how does the display work from different angles if the sample is not touched? Mr Muraus added: “High-precision rotation and tilting axes ensure that the different perspectives can be operated. The generated 3-D data then enables the measurement of contour and shape, as well as deviations.”

Non-contact measurement plays a special role in sensitive industries such as medical technology. The nature of the components poses an additional challenge here. Implants or prostheses are often characterized by steep flanks, complex shapes, and, finally, high-gloss surfaces. However, FocusX determines the dimensions, position, shape, and roughness of the parts in an automated, traceable, and repeatable manner, and importantly all of this is contactless.

Incidentally, roughness plays an important role in medical technology, as the surface quality is decisive for how an implant is accepted. However, human medicine is not the only industry that focuses on roughness in quality assurance. This is because it not only significantly influences the look and feel of components, but also their functionality. Even if it now seems retrograde, many companies still use tactile profile roughness measurement because it is well-established and seems easier. For the first time, however, FocusX allows users to carry out ISO-compliant roughness measurements with just a few clicks. The roughness measurement is designed to be particularly user-friendly and easy to handle. Moreover, a reliable, accurate, and precise roughness measurement can be carried out without any expert knowledge.

“The measurement technology must adapt to production and not the other way around," said Mr Muraus, explaining why speed also plays a role. Even in optical metrology, high-resolution representations of geometry must not take hours. That is why FocusX delivers millions of measuring points within seconds and offers the option of automating all measuring tasks. "This makes FocusX the fastest measuring device in its precision class," said Mr Muraus.

Florian Reinle, process engineer (simulation and tribology at OTEC), who has been working with the FocusX since November, said: “As an experienced user of Bruker Alicona measuring devices, I would say that the FocusX is hardly inferior to the higher-priced devices. It is fast and precise; the decent measuring volume is sufficient for most applications and the compact design convinced me straight away. FocusX definitely is a worthwhile addition.”

FocusX will be available to order from 5 February and deliveries will commence at the beginning of May. Bruker Alicona systems are available in the UK from Market Harborough-based Optimax Imaging and Inspection Ltd. FocusX comes equipped with advanced Focus-Variation technology, which was first launched on the market with the Bruker Alicona µCMM (coordinate measuring machine). This is particularly suitable for measurements on extremely smooth surfaces and is also faster than the previous Focus-Variation technology.

FocusX now makes this technology accessible to a wider audience, as the device offers an incomparable price-performance ratio. As a result, optical 3-D precision measurement technology is suddenly also becoming an issue for companies that have previously only made inadequate use of tactile devices.
