Verifying surface quality and dimensional accuracy

Posted on 06 May 2024. Edited by: John Hunter. Read 987 times.
Verifying surface quality and dimensional accuracyVerifying the surface quality and dimensional accuracy of small features on large components can be a challenging task. While coordinate measuring machines (CMMs) excel at measuring dimensional positions, assessing the 3-D form and surface finish of intricate features poses a greater challenge.

To tackle this, optical 3-D measurement systems offer a viable solution. These systems can capture both the form and finish of a surface using a single sensor, particularly those based on Focus Variation technology. However, when the component exceeds the size limitations of such instruments, alternative solutions become necessary.

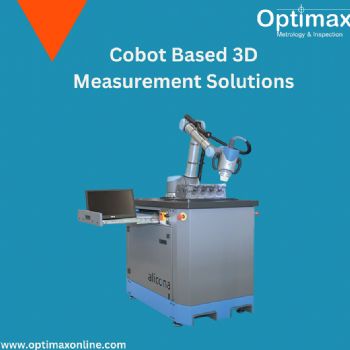

One such solution is the cobot-based measurement system developed by Bruker Alicona. This system combines a collaborative six-axis robot from Universal Robots with the robust optical 3-D measurement IF-SensorR25 from Bruker Alicona. The IF-SensorR25 provides high-resolution, traceable, and repeatable measurements using the Focus Variation principle. With a vertical travel range of 26mm and motorised functionality, the sensor incorporates a built-in LED travel ring light with 24 segmented LEDs. These collaborative systems are adaptable to various measurement tasks and applications.

Programming, measuring, and managing pre-defined measurement programs require minimal prior knowledge of metrology. Bruker Alicona offers several versions of cobots tailored for specific tasks such as measuring discs, blisks, turbine casings, and a Compact Cobot designed for universal industrial quality assurance.

These innovative products are available in the UK through Market Harborough-based Optimax Imaging and Inspection, facilitating advanced surface quality and dimensional accuracy verification for large components with small features.
