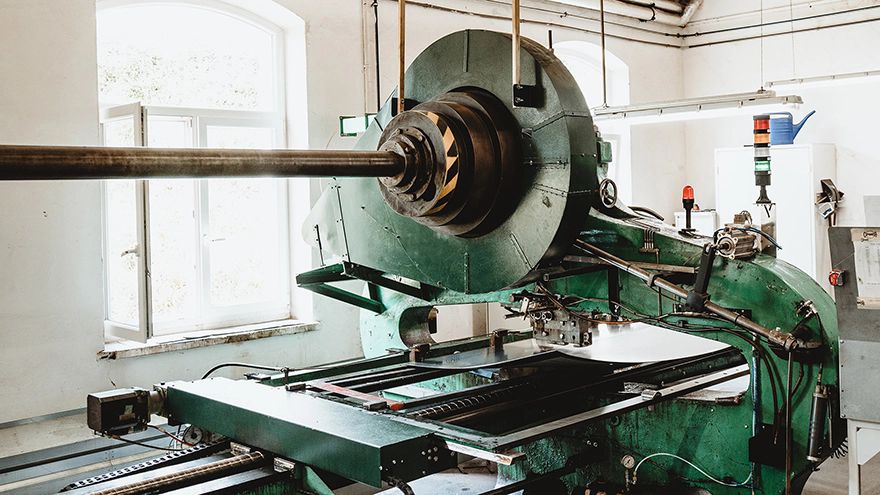

Well-deserved retirement: after 130 years, the old punching machine goes into retirement at the end of the year. The TruPunch 5000 takes over. Photo: TrumpfCimbria in Austria wanted to replace a 130-year-old punching machine — a piece of industrial history. Many machine suppliers listened to the requirements, but only Trumpf dared to take on the task. In the end, the TruPunch 5000 punching machine from Trumpf not only replaced the historic machine, but also took on the tasks of seven machines combined.
The sheet weighs 40kg, which the production workers balance and clamp onto the old punching machine. Row by row, the machine pushes the sheet further. The punching head lowers evenly and presses the form into the thin material, always the same: 12 depressions, 12 more depressions, two meters in one direction, two meters back, until the sheet is full. The sheet metal that is produced here will later be used to sort seeds. The technology is 130 years old, it dates back to the early days of the Cimbria Heid company — and it will soon be allowed to retire.
Nikolaus Heid designed the punching machine in 1894. Since then, the company has repeatedly modernised the technology. Patrick Jansen, director manufacturing at Cimbria, said: “We had to face reality and realise that at some point it would no longer work.” He plans to decommission two of the old punching machines by the end of 2024.
He added: “Of course it is bittersweet, the machines are part of the industrial history of the Heid company. But after 130 years, we also have to think about new technologies and the increased efficiency they bring.”

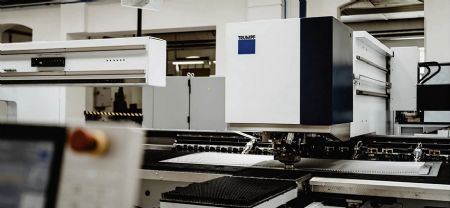

Pictured right: the TruPunch 5000 not only replaces the historical machine, but also takes over tasks that were previously performed by seven machinesHeid Agrartechnik has been part of the Danish company Cimbria since 1989. The punching machines are one of the company's key technologies. Mr Jansen continued: “They process sheets for a trieur, a machine that later sorts grain or seed. That has always been one of our core competencies.”
The trieur sorts desired grains from unwanted grains. The sheets are later formed into cylinders that rotate around a channel. The depressions in the tray — also known as ‘pockets’ — hold the desired grain and transport it upwards. From there, it falls down onto the channel. Grains that do not fit into the recesses fall out of the cylinder again.
There are two challenges with the depressions: their shape and how many of them are on the surface. Depending on the desired grain size, a different depth is required. They range from the smallest depressions for clover seeds to 28mm holes for sunflower seeds. The shape is not only round, it also resembles a drop depending on the seeds to be sorted — and a separate tool is required for each mold.
Looking for alternativesAustrian plant manager Günther Schwarz explains: “You can press a pocket relatively easily and quickly, but pressing so many pockets onto a 2m-long sheet is a technical challenge.”
In summer 2021, Mr Jansen and Mr Schwarz began looking for alternatives to the old machines — and in September 2023 they put the new punching machine from Trumpf into operation. Mr Schwarz said: “The old machines were so sacred, we could not even imagine that a modern machine could process the sheet metal the way we need it.” Cimbria made contact with 10 providers. All but Trumpf later dropped out.

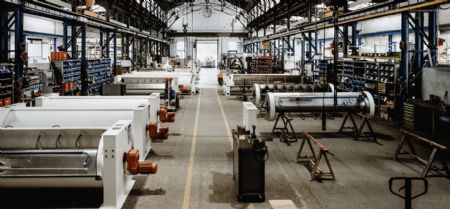

Pictured left: in the historic production hall, Cimbria Heid manufactures trieurs, machines for sorting seed and grainPeter Sternat, Trumpf sales manager for Eastern Austria, said: “We made several trips to Cimbria Heid to implement Cimbria’s requirements and Günther Schwarz also visited our customer centre in Ditzingen.”
Together, they integrated the TruPunch 5000 into the layout of the current machine fleet and developed the first tool heads for the drop mold. Mr Sternat added: “We have made progress step by step.”
For Cimbria Heid, the new machine means an increase in efficiency. Work steps that used to be carried out on different machines are now performed by the TruPunch 5000. It punches the depressions into the sheet at up to 1,600 strokes per minute. Active presser feet prevent the material from swelling during the process — eliminating the need for subsequent straightening. One function cuts the sheet to the desired size, another deburrs the cutting edges. Embossing tools mark the sheets.
The SheetMaster is now the one to move the 40-kilogram sheets — not the production employees. The tool change for more than 50 tools is also automated. Cimbria Heid produces the complex segment sheets for the trieur during the day in order to check the results. At night, the machine produces simpler flat screens without the need for personnel. Mr Jansen said: “We can now utilise the machine much better — and our team is delighted with the new technology.”
Cimbria Heid has collected around 450 punching heads for various grain and seed shapes over 130 years. They also need these heads for the new machine. Mr Jansen explains: “We test every single tool to ensure that the sorting plates continue to meet our quality standards. That will take some time. What will happen to the old machines afterwards is still unclear. But the production manager is certain: “We will find a worthy place for them. Maybe they will move into an industrial museum.”
