New entry-level machine tending cell from Halter

Posted on 23 Jan 2025. Edited by: John Hunter. Read 1542 times.

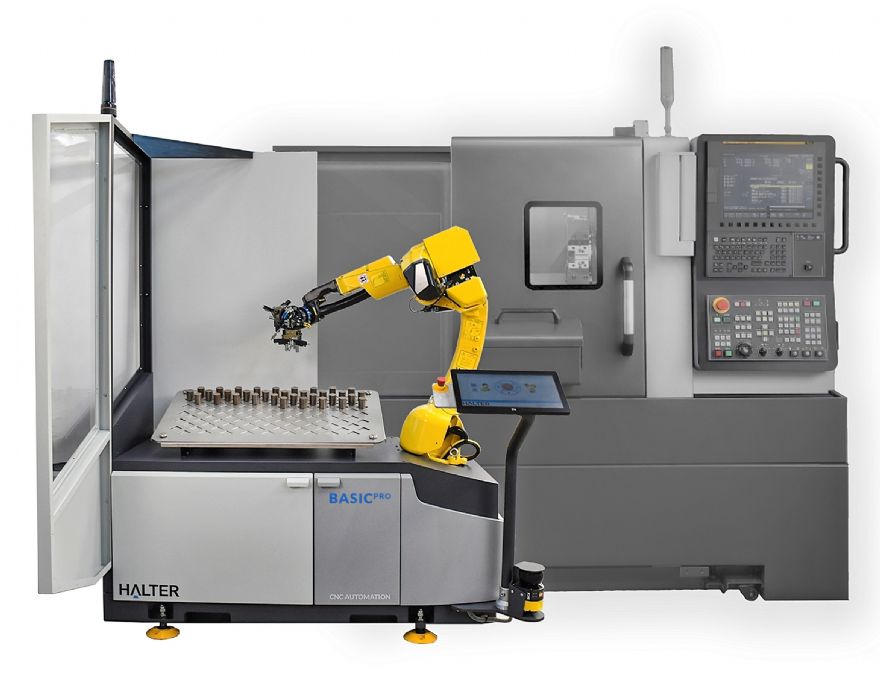

New entry-level machine tending cell from HalterHalter Basic Pro represents a competitive, entry-level automation solution

Automatic loading and unloading of machine tools is becoming increasingly necessary for manufacturers to be competitive in the global marketplace. To address this need, Dutch firm Halter CNC Automation has introduced a new, entry-level machine tending cell, the Halter Basic Pro. Availability in England, Wales and Scotland is through sole agent 1st Machine Tool Accessories, Salisbury.

Comprising a six-axis industrial robot, the Basic Pro offers a competitive, entry-level automation solution. By working closely with its partners and suppliers, Halter has succeeded in maintaining high technology and reliability. With the manufacturer's user-friendly touch-screen SmartControl, even if a workpiece has not been handled before, the changeover time to start a new production process is only a few minutes. Furthermore, the operator needs no prior experience of robot programming, which is carried out while machining of the previous parts is in progress to maximise production output.

As with all of the company’s systems, the plug-and-play Halter Basic Pro can be supplied with new machines, or retrofitted to existing plant regardless of machine age and type of control. Use of a floor-level, 270deg laser scanner provides a safety zone. The robot slows if the operator approaches and stops immediately if the light curtain is breached.

An adjustable air pressure supply is provided for the double gripper, which can have either two or three fingers for holding raw material and finish-machined workpieces internally or externally. Workpieces from 10 to 135mm diameter or square may be handled up to a maximum weight of 12kg, including the gripper head. The grid plate holding the raw material and finished parts is adjustable in height to suit the installation and is able to hold up to 188 workpieces if the locations are sized up to 20mm, the number dropping to 14 parts as the size reaches 135mm.

Halter is a leading company in the field of high-quality robotic loading cells, with more than 1,000 installations worldwide feeding CNC lathes, machining centres, deep hole drilling machines, grinders and other machine tools, as well as coordinate measuring machines and indeed any inspection equipment. Nearly 95% of customers in 25 countries, including two dozen or so in the UK, report a return on investment within 18 months, with some saying it is as short as five months.
