XYZ mill is the perfect tonic for NHS Trust

A new XYZ RMX 3500 milling machine fitted with a ProtoTRAK RX Touchscreen control, has reduced machining time from weeks to hours for bespoke products at the workshop of a major London NHS Trust. Barts Health NHS Trust’s Mechanical Engineering Workshop is now leveraging the benefits of its new machine to take on more complex projects and tap into additional commercial opportunities.

The Mechanical Engineering Workshop is part of the Clinical Physics Department at Barts Health NHS Trust. The Trust spans five London hospitals that collectively provide 2.5 million people with healthcare and clinical services. Housing the Mechanical Engineering Workshop is the Royal London Hospital in Whitechapel, one of the capital’s leading trauma, emergency care and hyper-acute stroke centres. The hospital is also home to London's Air Ambulance service.

Functions of the workshop include: the supply of general engineering and repair services to the hospital; the reconditioning of surgical instruments such as scissors, osteotomes and chisels; and the support of R&D/service development activities for not only the Clinical Physics Department but the whole Trust. However, the workshop’s core commercial activity is the manufacture of tissue-mimicking materials, known as ‘phantoms’.

Phantom materials are synthetic objects made from special resins and hardeners that mimic the properties of biological tissues found in the human body. Different ingredient percentages achieve the density necessary for materials that replicate tissues such as lung, kidney, liver, leg bone and rib bone.

The phantoms are used in radiation quality assurance checks within imaging departments and on LINAC (linear accelerator) machines that deliver radiation during cancer treatment. The phantoms mimic the absorption characteristics of tissues over a wide range of energies and hence, the precision engineering of these phantoms is essential. The Mechanical Engineering Workshop sells its phantoms to commercial partners all around the world. Machining the phantoms to final size and shape previously took place on an ageing manual turret mill.

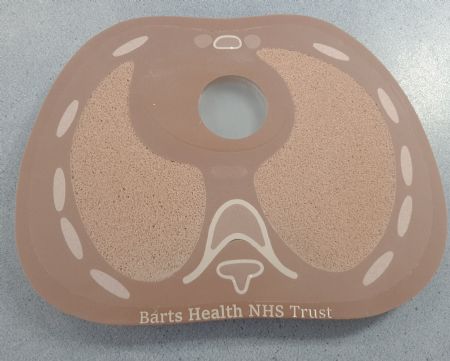

Pictured right: A sample phantom with inserts and frame machined on the RMX 3500

Nathan Niemann, a mechanical engineering technician at Barts, said: “We were turning away requests for more complex/tailored phantoms with freeform contours because we didn’t have the machining capability. It was time to put forward a business case for a CNC milling machine based on the additional services and revenue it would generate.”

Around the same time, the Mechanical Engineering Workshop was in the process of recruiting its first-ever apprentice. Upon visiting its education partner, Uxbridge College, the team discovered that the college’s machines were supplied by Devon-based XYZ Machine Tools.

Impressed by ProtoTRAK’s offline capability
Mr Niemann continued: “We thought it would be ideal to have the same machine brand as those used at the college by our apprentice. Also, when we started looking in detail at the ProtoTRAK offline software, which allows users to write, edit and inspect programs using a standard PC, we knew it would be perfect for us. The fact we can also draw parts at the machine itself was another major selling point.”

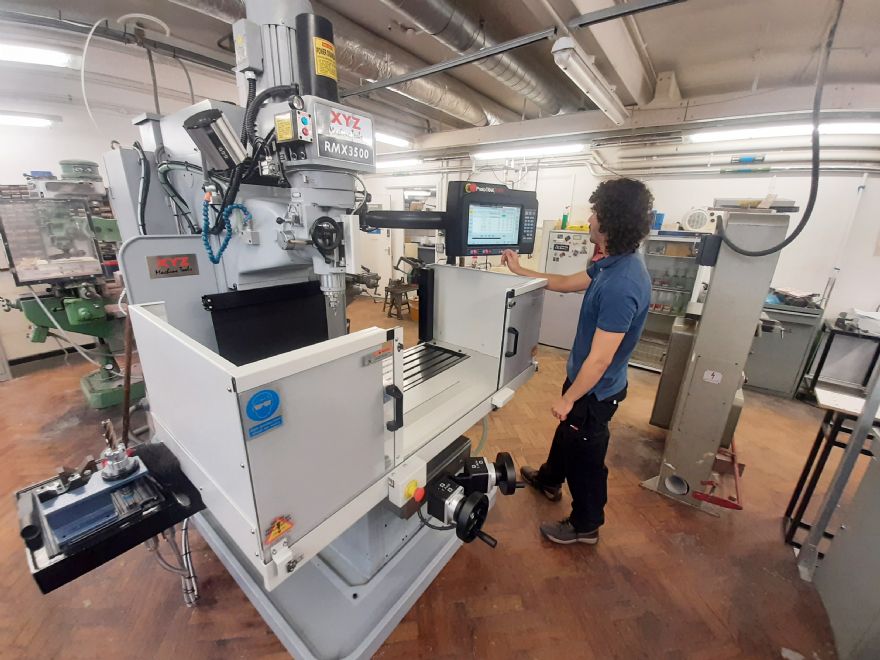

The XYZ RMX 3500 bed mill with ProtoTRAK RX Touchscreen control arrived in April 2024. However, getting it through the standard double doorway entry was a challenge. Mr Neimann added: “Fortunately, the XYZ delivery and installation team came to our rescue. They dropped the machine head down and split the frame in two. They also had a special A-frame jack to crane the two halves through the door before re-assembling the machine inside. It was great teamwork.”

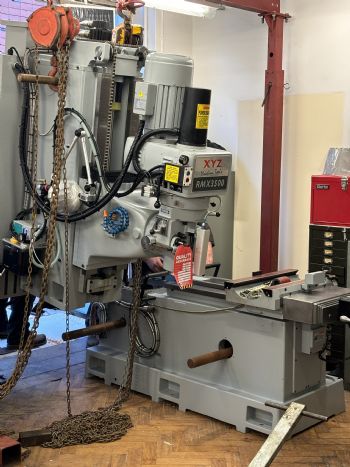

Pictured left: The RMX 3500 had to be craned into the facility in two halves

The RMX 3500 brings three-axis CNC milling within reach of all engineering workshops. With the latest-generation ProtoTRAK RX touchscreen control using conversational programming, even an operator with no previous CNC experience can be producing parts within hours.

He explained: “We have around 80 years of combined experience among our four senior engineers, but none of us had tried CNC machining before. We were a little nervous at first, but it was surprisingly easy to work with the ProtoTRAK control. Three of us had one day of training at XYZ’s facility in Slough and we soon had complete confidence in our abilities.”

The workshop takes particularly advantage of the TRAKing feature, which allows operators to wind the handwheel so that the machine moves through the program. The faster the operator winds, the faster it machines. Stop or reverse the handwheel and the machine does the same.

Mr Niemann said: “Verifying everything in the program beforehand using the 3D solid model graphics provides complete confidence, and combining that with the TRAKing is a real life-saver, which is quite pertinent really, given the purpose of the phantoms.”

The machine is quick too. Depending on the type of phantom, the workshop is now witnessing 30% faster cycle times on average. However, some jobs have seen dramatic productivity gains.

Mr Niemann concluded: “A head and neck phantom would previously require three weeks of machining time,, but With our RMX 3500 we can complete the same job in just 6hr. We work to typical tolerances of ±0.05mm and the CNC control makes it so easy.”

The workshop is now taking orders for more complex phantoms and tapping into major opportunities that it never had previously. The RMX 3500 bed mill has made such an impact that the team at St Bart‘s is now in the process of acquiring an XYZ Proturn RLX 1630 lathe, again with ProtoTRAK RX touchscreen control.
