SigmaTEK Systems, a developer of CAD/CAM software solutions for the fabrication industry with facilities world-wide, has released Version 20 of its SigmaNest product portfolio.

Available in the UK from Nottingham-based Sigmatek Automation UK Ltd (www.sigmatek-automation.co.uk), this release introduces new features in all areas of the product, with ‘continued emphasis on user experience, optimising material utilisation, and data management’.

For example, a new SigmaTEK Launcher provides a customisable desk-top platform from which users can easily access core SigmaTEK products, as well as ‘eco-system applications’ such as ‘license manager’, database utilities and help resources.

The Launcher also displays a live social-media feed to ensure that users are aware of the latest product information, trade shows and educational ‘webinar’ schedules.

SigmaNest enhancements include support for part priority nesting, nesting of filler parts, and nesting of ‘mini-sheets’ or ‘mini-nests’, while the new CAD Import Plus module does not require a local CAD installation to import a wide variety of file formats.

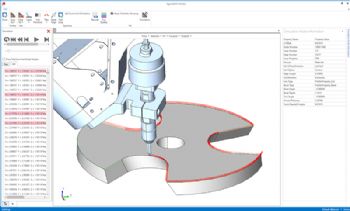

Furthermore, profiling enhancements see the introduction of ‘innovative bevel capabilities’ that allow users to import part files with complex bevels and apply NC directly to the 3-D model in an interactive 3-D viewer to ensure safe and accurate tool-path generation and better program verification.

Other SigmaNest developments include expanded support for the Trumpf TruMatic 1000 Fiber punch/laser machine, laser pre-cutting for creating complex threaded holes on combination machines, and the use of raw-sheet edges as the part edge with greatly improved height detection and probe cycles near the sheet edge.

Version 20 also introduces SigmaQuote, a new integrated job quoting tool that replaces SigmaNest’s previous Jobs module.

Meanwhile, further improvements have been made to the SigmaTEK 3D suite of applications for tube, bar stock, 3-D models, and sheet metal-forming; these include the ability to convert multi-piece common line ‘gores’ into a single no-kerf common line part within SigmaDevelop (a 3-D system for standard ducting and HVAC geometry).

SigmaBend now includes a new ‘radial menu’ with ‘dynamic shortcuts’ for editing the tool stations, back-gauges and the part itself, while SigmaTube (this generates nests and NC code for tube and pipe cutting) now includes support for new inventory profiles, plus tab and notch enhancements.

There have also been updates to Color Offload and SimTrans (this links SigmaNest with other business systems).
