Offering a range of products, services, and solutions that increase the profitability and sustainability of businesses world-wide,
Q8Oils is not only one of the leading brands names for oils and lubricants, but also a provider of single supply solutions for a variety of applications in the automotive, energy, metalworking and general industry market segments.
Working with its client,
Twiflex, Q8Oils was looking for effective improvements to its metalworking filtration needs. Twiflex designs and manufactures advanced braking technologies for industrial applications and as a global leader in its field, it is imperative to the business that the finished products, such as its industrial brake discs, are manufactured to the highest possible standard.
While its current process was working sufficiently, Twiflex was exploring new methods to improve the productivity of its grinding machine which grinds both cast iron and steel. While other filtration methods, such as paper filters, can offer an effective barrier against larger particles, they can allow for smaller ferrous particles to pass through with the fluids which can lead to a significant reduction in tool life expectancy.
Q8Oils regularly installs
Eclipse Magnetics products on a number of its customers' metalworking tools as part of its equipment solution services and, through partnering with expert filtration suppliers, can offer advice and support to address metalworking cleanliness issues, particularly to those with high-precision needs.

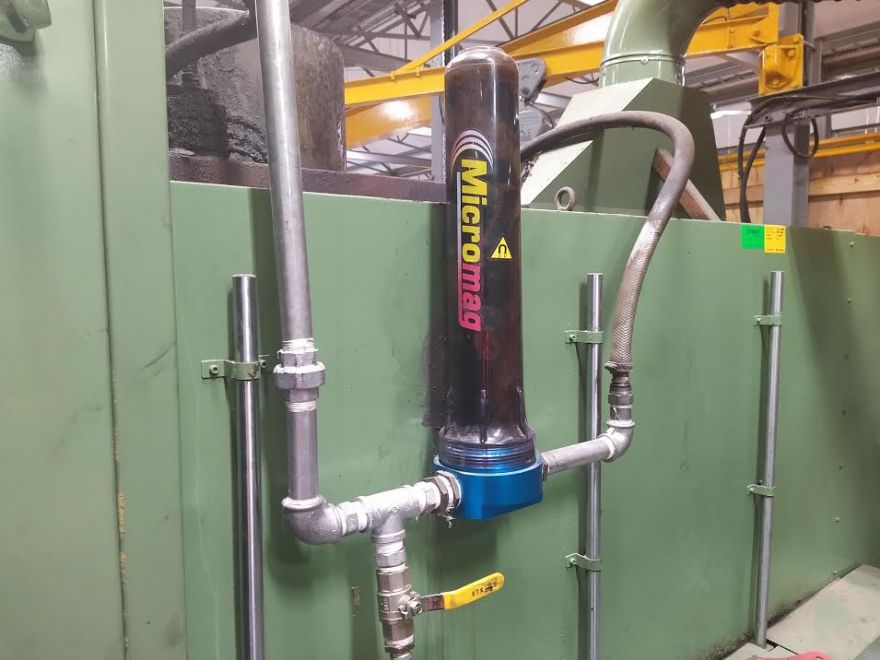

In addition to the use of their Berlioz XRS synthetic grinding fluid, Q8 installed an Eclipse Magnetics MicroMag MM20 in-line, prior to fluid delivery, to bolster the filtration system of Twiflix’s grinding machine.
With its high-intensity magnetic core and patented fluid-flow path, the MicroMag captures almost 100% of ferrous contamination from metal-working fluids, providing one of the most effective filtration methods on the market. The range also boasts a compact and easy-clean design with a high-capacity collection that doesn’t block the throughflow, nor does it impact the pressure or flow of the fluids.

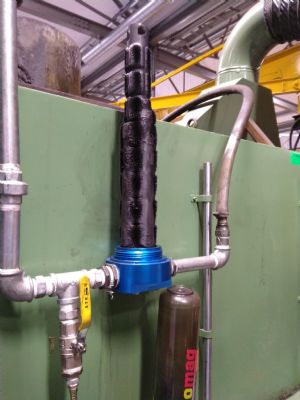

Having had the MM20 installed for one month, with intermittent usage, the filter had caught over 2kg of ferrous materials when removed for cleaning. Q8Oils has also reported that Twiflex has seen a substantial improvement to the grinding stone life, with the frequency of grinding wheel dress largely extended.
An improvement in fluid cleanliness was also noted that in-turn had prevented the ‘flecking’ effect caused by fine debris caught between the wheel and the workpiece during the grinding process.
The MM20 will maintain its effectiveness throughout the duration of the tool’s lifespan without losing intensity. Plus, with no need to replace filters or other consumables, as well as a reduction in scrap and reject rate, the MicroMag offers an impressively quick return on investment.
A Twiflex maintenance and service engineer said: “We trialled the Eclipse Magnetics filter for a month on our surface grinding machine and found it to be so effective that we decided to purchase it. We can see a difference with tool life and coolant life is much longer. This machine doesn’t have any other filters on it so we can really see the benefits.”
