AMRC graduate’s project utilised at Ceratizit’s new Technical Centre

Posted on 29 Oct 2021 and read 1059 times

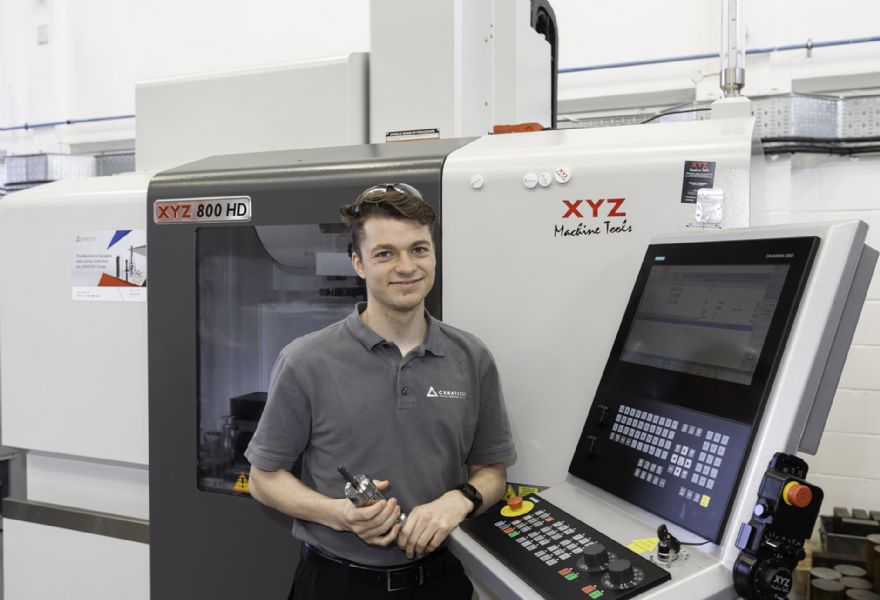

AMRC graduate’s project utilised at Ceratizit’s new Technical Centre Stephen Pennington at the XYZ 800 HD vertical machining centre used to machine the components for the 3-D printer

Ceratizit UK & Ireland’s investment in apprentice training is paying off with Stephen Pennington completing his Manufacturing Technology degree apprenticeship and final year Industrial Project by designing and manufacturing a feature-rich custom cartesian 3-D printer.

It will now be used in the new Ceratizit Technology Centre in Sheffield to rapidly prototype special tooling prior to their manufacture within the group, as well as other workshop applications.

Stephen, who is now a projects sales engineer working in the Ceratizit Technology Centre, was given full creative control of the project, which involved carrying out a review of existing desktop 3-D printing systems and identifying the best features of each, then incorporating them into his design.

The result was a 3-D printer featuring a fully custom aluminium frame, linear rail technology to move each axis, 32-bit mainboard for control, an automatic bed-levelling sensor, direct drive extrusion and a touchscreen user interface.

In total, 150 hours were spent on the project, which included 50 hours of machining components on the XYZ 800 HD vertical machining centre located within Ceratizit UK & Ireland’s Technology Centre and the writing of a 7,000-word dissertation.

CeratizitWhile the design element of the project went ahead with minimal complications, the deadline to finish the machining, assembly and testing of the 3-D printer was fast approaching. Machining was to be done in the Ceratizit Technology Centre, which at the time was still being finalised and machines still being installed, time was running out for Stephen.

He said: “It was just a month before my deadline when the XYZ 800 HD machine was installed and I was itching to get started. I had created the assembly, parts and programs using Fusion 360 CAD/CAM software and, of course, the Ceratizit tooling that I needed was ready and waiting. So as soon as the machine was fully commissioned, I began the machining of the main structural components.”

Stephen underwent training on the XYZ 800 HD machine under the guidance of XYZ Machine Tools’ Mark Higson and was quickly up-to-speed with all of the machine’s capabilities. This allowed him to maximise the performance of the Ceratizit tooling, which included AluLine DLC (Diamond Like Coating) milling cutters ranging in size from 4 to 16mm, making use of the various cutter geometries available to him.

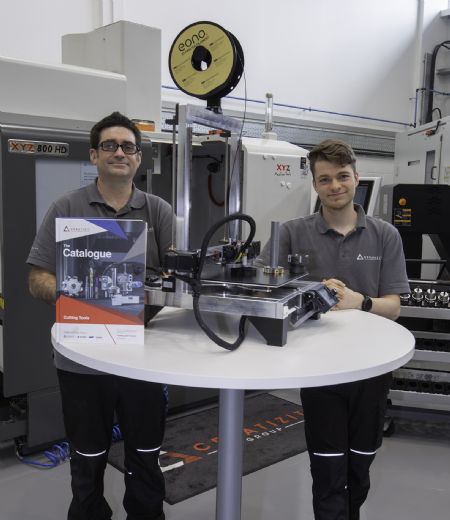

A range of Ceratizit thread milling cutters and solid carbide drills were also part of the tooling package used in the project. Stephen was mentored by Ceratizit UK & Ireland technical manager Shaun Thornton (pictured above with Stephen), throughout the project, who kept a watching brief, offering advice and guidance when required.

While many apprentice projects simply gather dust on a shelf, Stephen’s 3-D printer is going to be hard at work creating rapid prototype models of special tooling for customers. These will be used to aid visualisation of the finished tool, allow clearances to be checked and generate the confidence that customers are looking for prior to full manufacture of the tools.
