Production cell boosts output at Drury Precison Engineering

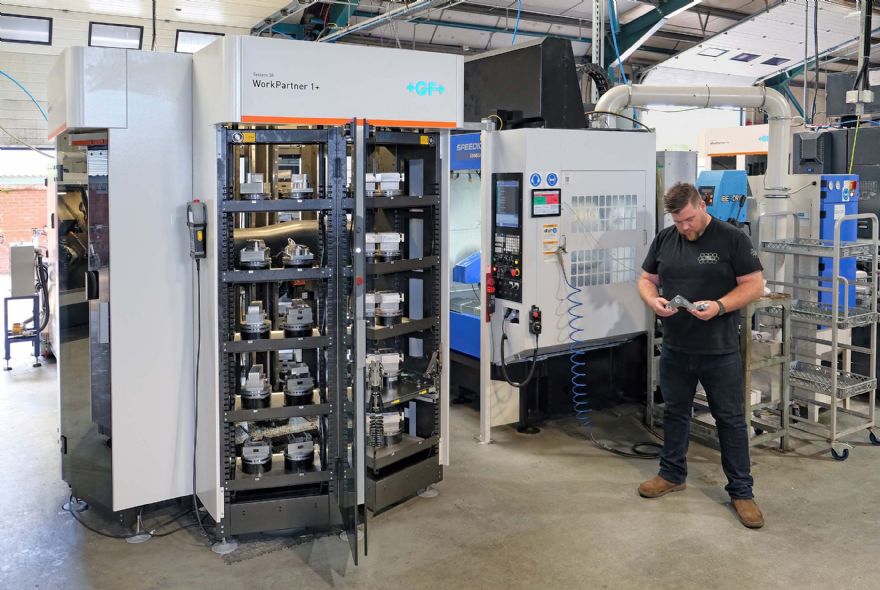

Brother U500Xd1/System 3R WorkPartner Plus production cell at Drury Precision Engineering

Originally established in 2003 as a sub-contractor, Drury Precision Engineering began two years later to manufacture its own range of mainly aluminium motorcycle accessories for road and racing bikes and has been so successful that it now no longer takes on external machining work, selling-its after-market bike components globally under the Evotech Performance brand. The last eight years have seen exceptional year-on-year growth in turnover that has necessitated careful planning of production capacity on the shopfloor to keep pace with demand.

A user since 2015 of 16,000rev/min, high-efficiency machining centres from Brother, Japan, supplied through sole UK and Ireland agent Whitehouse Machine Tools (WMT), Drury has over the years used various manually operated, twin automatic pallet change (2APC) models of the three-axis, 30-taper machines, of which only two remain. That is because, to raise throughput, the company decided in 2015 to transition to automated Brother production cells with the purchase of two five-axis Speedio M140X2s.

One was equipped with a Brother 4m Feedio vision-based, robotic component-handling system, while the other was connected to a System 3R WorkPartner Plus storage and handling system accommodating 180 pallets. The latter cell targeted Op20 inefficiencies within the factory and was set up so that both Op10 and Op20 could be completed automatically for six motorbike parts in left- and right-handed versions, unattended for up to 20hr.

Nick Cooper (pictured left), director in charge of machining at Drury Precision Engineering, holding an Evotech Performance crash protection arm for this year’s KTM 1390 Super Duke R motorcycle

Now the company has gone one step with the installation in March 2023 of a larger-capacity Brother Speedio U500Xd1 five-axis machining centre with pneumatically-operated zero-point pallet location, again served by a WorkPartner Plus storage and handling system, but this time for 60 heavy-duty pallets.

It proved so successful that a second, almost identical cell has been ordered for delivery in October 2024, complete with its own WorkPartner Plus, as sharing one storage system between the two machines would reduce unmanned running hours to below the required 14hr per machine.

The only difference with the second U500Xd1 is that it will be fitted with Brother’s latest D00 CNC system with a 15in screen, monitoring of automatic tool change and machine load, and most importantly capability for full five-axis machining, whereas the control on first machine interpolates only four axes simultaneously.

Nick Cooper, the director in charge of machining who runs the company with partners Dan Rack and Chris Vines, said: “These latest Brother machines have a larger working volume than the M140X2’s, so we can produce bigger components like crash protection products and some tail tidy parts completely in two operations.”

Drury is a power user of Brother machines that has the ear of the Japanese manufacturer via WMT CNC. Suggestions made have been incorporated into the U500Xd1, one of which was to raise the tool capacity in the turret from 21, as in Brother M-series machines, to 28. Mr Cooper describes this as a massive benefit, as more jobs can be produced without re-tooling and there is extra space for sister tool exchange during unattended production.

Blisteringly fast
Another benefit of having more cutters available is that additional refinements can be machined into the bike components so that reverse engineering and copying of Evotech Performance products by unscrupulous overseas companies becomes more difficult. The time lost by introducing a couple of additional tool changes is minimal, as exchange time is 0.6sec and chip-to chip is only double that, while spindle acceleration to 16,000rev/min is blisteringly fast at 0.2sec. Full five-axis interpolation on the next U500Xd1 will further expand the introduction of design enhancements and will also present opportunities to decrease component size and weight.

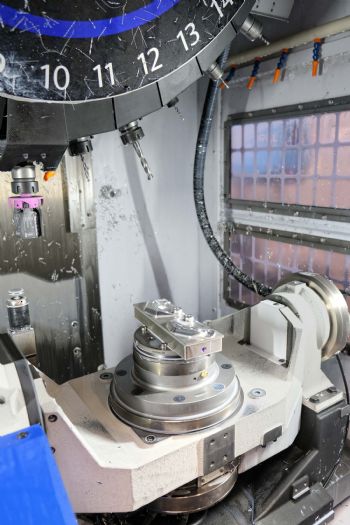

Machining area of the Brother U500Xd1 30-taper, trunnion-type, five-axis machining centre

As with all but the earliest Brother machine on the Alford site, the latest U-series machine has been delivered with a BIG Plus face-and-taper contact spindle interface, providing rigidity for achieving excellent surface finish. Cosmetic appearance of Evotech Performance products is an important factor for brand reputation and maximising sales.

In some ways, Drury is a victim of its own success. Where the early product range was mainly restricted to tail tidies, radiator guards and crash protection items, more recently satnav mounts and guards for brakes and headlights have been added. The company already has a large number parts on its system and a recent doubling of in-house designers to four means that the number will grow ever more quickly. Hundreds of new products are introduced every year, but those discontinued are counted in tens.

The earlier production strategy in Alford was to maximise Op10 cycle time in the first two automated Brother cells and minimise Op20 for completion on manually loaded machines. To illustrate the disparity between the operations, Op10 for a BMW tail tidy is 40min whereas Op20 is just 50sec. Re-engineering all existing jobs to equalise the operations for automated manufacture would be too time-consuming and will only be done in a few cases, hence the decision to retain the two Brother APC machines without automation.

The future for Drury Precision Engineerikng is to increase the complete manufacture of components in automated production cells using balanced operations and this is how future jobs will be programmed. The company already uses a pair of HSK-25, 40,000rev/min gantry mills for particularly intricate work and Mr Cooper is currently investigating with WMT CNC the potential use of a high-speed electric spindle on the Brother machines. It will save wear on the machining centre spindles when using small diameter ball nose cutters to scan fine surface finishes during cycles that improve the cosmetic appearance of the bike after-market products.
