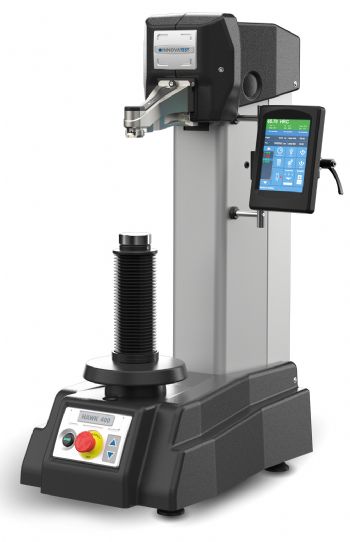

Bowers Group has launched the new Innovatest Hawk series of Rockwell Machine hardness testers in the UK. With the addition of the nose-mounted indenter, the Hawk series can test internal diameters as small as 22mm within a wide range of components with hard-to-reach test spots including pipes, U-shaped parts, nuts, bolts, gear box parts and cardan shafts.
The Hawk’s protruding nose allows force to be applied from directly above the indenter, negating a ‘trenching effect’ which is often caused by the indenter being dragged through the sample in machines where the load is applied by a lever arm.
Martin Hawkins, Bowers Group sales director, said: “With the addition of the new nose-mounted load cell, this exciting new range provides users with an ‘internal’ testing capacity that can reach as far as 165mm inside a bore, as well as providing measurement on flat surfaces offered by other Rockwell machines, providing an ideal solution for all hardness testing.
“We are pleased to be able to offer this great range of machines to the UK market, and we look forward to the interest that we are certain the HAWK series will bring.”
Within the range, the Hawk 250RS delivers the latest technology on internal Rockwell Hardness testing, and provides Brinell testing, as well as optional Vickers and Knoop impressions. The Hawk 400RS is a taller version of the 250RS with an optional clamp that fixes workpieces, with the 400RS-IMP offering the ability to be fitted with an optional automatic spindle, allowing the full process of lifting, clamping and testing to take place without operator interference.
Meanwhile, the Hawk 651RS is supplied with a large 425 x 370mm testing table with a hardened test area inlay that also gives space to mount all kinds of anvils.
The most technologically advanced model is the 652RS-IMP, which has a unique double Z-axis system, allowing for a 650mm working height as well as different test positions for special-shaped samples. The second adjustable position can support a wide range of different and specialised anvils, or tables to support test pieces from the inside, outside, top or the bottom.
The nose provides a throat depth of 200mm on the 250RS and 400RS-IMP models allowing for testing on any component without being hindered by a regular test head, offering an excellent overview on the workpiece. The range also comes equipped with integrated LED sample illumination, i-Touch software system, advanced tester control and USB connectivity.
To find out more or to book a demonstration, contact Bowers Group on 01276 469 866 or alternatively by email .
