Multi-process CNC machine tool for end mill manufacturing developed

US collaboration develops innovation that completely automates the production of complex profile end mills — from blank to finished tool

Posted on 27 May 2022 and read 957 times
Multi-process CNC machine tool for end mill manufacturing developedUS manufacturers Star Cutter Company and Garr Tool have jointly developed an innovative five-axis CNC machine tool that completely automates the production of complex profile end mills — from blank to finished tool.

Star Cutter Company specialises in carbide and preform manufacturing, cutting tools and CNC machines for tool/cutter grinding and hob sharpening. Founded in Detroit back in 1927, the company today operates six manufacturing facilities in Michigan. Its Elk Rapids Engineering division is responsible for the renowned Star brand of CNC tool and cutter grinders.

Garr Tool is the USA’s leading manufacturer of high-performance solid carbide cutting tools. From humble beginnings with Fred Leppien in his garage in 1944, it now operates a ‘state of the art’ 200,000ft2 manufacturing facility in central Michigan with over 150 CNC grinders. The company specialises in solid carbide cutting tools, including end mills, drills, reamers and routers.

Garr Tool makes extensive use of CNC automation, including tool grinding machines from Ulmer Werkzeugschleiftechnik (UWS) and Star Cutter. All of these machines are based on control technology supplied by the specialist CNC company NUM. Star Cutter, for example, has partnered with NUM for cooperative development of application-specific CNC hardware and software since 1998, and nowadays bases nearly all its machine tools on NUM’s open-architecture Flexium+ CNC platform.

According to John Leppien II, Vice President of Garr Tool, “We use NUM’s NUMROTO software for tool production and reconditioning on all of our Star and UWS machines. Our operators regard it as very flexible and user-friendly, and we find that it encourages interdepartmental knowledge sharing and also helps to reduce our training overheads.”

A few years back, Garr Tool began producing a series of large diameter tools for use on high torque machines employed in the aerospace industry; however, manufacturing the tools involved multiple machines and multiple processes.

The company therefore embarked on a collaborative project with Star Cutter’s Elk Rapids Engineering team, to develop a multi-process machine capable of handling the entire production task. The result was a 2018 development of a Star CNC Tool grinder which included NUMROTO end mill software, cylindrical grind, along with linear motors and drives, with all five axes on a closed loop chiller/coolant system. This thermally stable machine allows Garr Tool to maintain .001in in diameter on the OD of these tools during lights out for 48hr unattended runs.

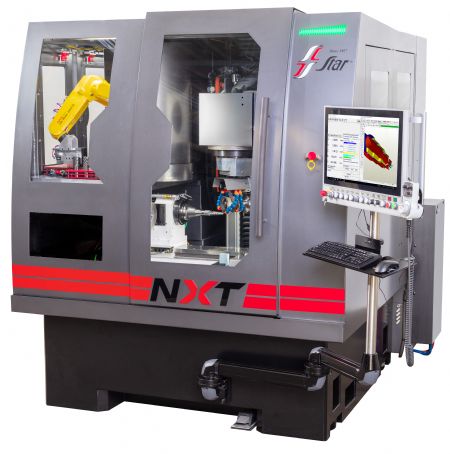

Star's latest machine, the NXT tool and cutter grinder, now also incorporates these same features Starthat were introduced to Garr Tool. Based on NUM’s Flexium+ CNC system and NUMROTO software, this new 5-axis machine tool features linear motors instead of ball screws on the X, Y and Z axes, direct drive torque motors on the B and C rotary axes, and a liquid-cooled spindle motor.

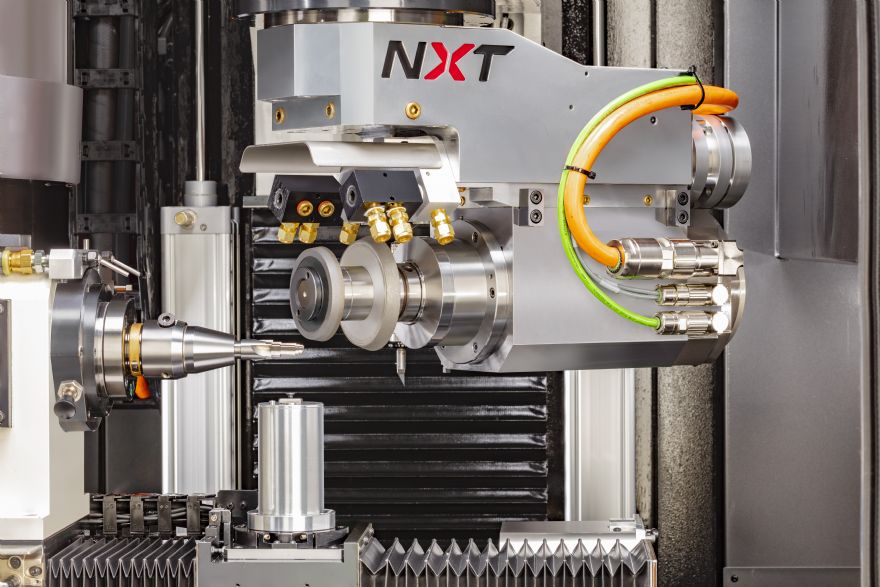

There is a choice of three different types of spindle motor, to best suit application needs; these include a very high speed unit capable of 24,000rev/min, and a very high power unit rated at 28kW.

The NXT has an exceptionally small footprint (including the spindle/axis chiller) of just 2,300 x 2,032mm, and an installed height of only 2,284mm. These dimensions mean that the machine can easily be accommodated on the shopfloor, where space is often at a premium. The base of the machine is cast in Zanite Plus polymer composite to ensure mechanical rigidity and thermal stability.

Despite its diminutive size, the NXT offers a substantial grind zone, with maximum X, Y and Z travels of 500 x 650 x 750mm. The machine can accommodate up to 381mm end work and up to 254mm diameter parts. Automated wheel changing and probing is standard with up to 203mm diameter wheels, and the NXT can also run up to 254mm diameter wheels with coolant manifolds and up to 305mm diameter wheels without.

The ability to use large diameter grinding wheels for profiling applications or small, sub 25mm diameter wheels for PCD pocket grinding on the same machine introduces a high level of production flexibility.

Star Cutter’s new NXT tool and cutter grinder features a fully integrated Fanuc 200iD compact six-axis short arm robot to facilitate fully automated processing of round and flat tool blanks; the standard gripper can handle from 5 to 32mm blanks, with other options available. In-process measurement data is fed directly to the CNC system’s NUMROTO software, to provide adaptive real-time control of the entire grinding process.

Based on a modular architecture, the NXT is designed for ease of integration with other forms of industrial automation and handling robots. An extensive range of factory-build and retrofit options include a travelling W axis and a 12,000rev/min wheel dresser.

Aaron Remsing Jr, sales manager
 for Star Cutter’s
 Elk Rapids engineering division, concluded: “We believe that the NXT is the smallest and most capable CNC tool and cutter grinder on the market. Even though it is an evolutionary design, its performance is nothing short of revolutionary.”
